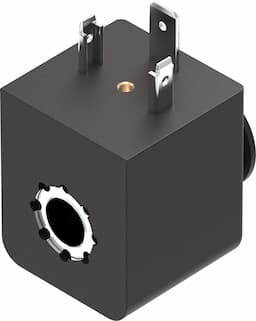

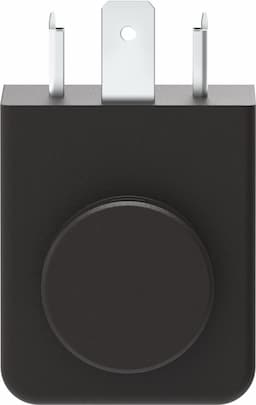

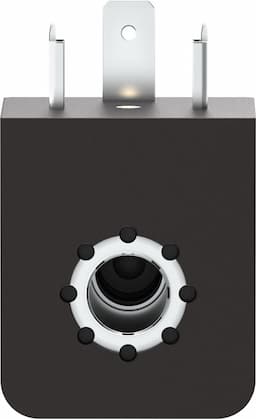

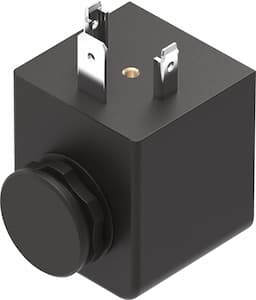

Product Model
vacn-n-a1-3a
Selling Points
- 1Electric actuation for precise control.
- 2100% duty cycle for continuous operation.
- 3IP65 protection against dust and water.
- 4Insulation material class F for reliability.
- 5CE marked and RoHS compliant for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Duty cycle | 100% | Insulation class | F |
Enameled wire insulation class | F | Coil characteristics | 230 V AC: 50 Hz, initial power 6.2 VA, holding power 3.7 VA 230 V AC: 60 Hz, initial power 4.9 VA, holding power 2.9 VA |
Surge resistance | 4kV | Contamination level | 3 |
Permissible voltage fluctuations | +/- 10 % | Maritime classification | See certificate |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Certificate issuing authority | DNV TAA000011J | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
Ambient temperature | -20°C 60°C | Product weight | 95g |
Electrical connection | Form A as per DIN EN 175301-803 | Type of mounting | With knurled nut |
Note on materials | RoHS-compliant | Housing material | Polymer Steel |
Material of pin contacts | Brass | Material of winding | Copper |
Manufacturer ID | 8029135 |
Specifications may be subject to change without notice
