Product Model

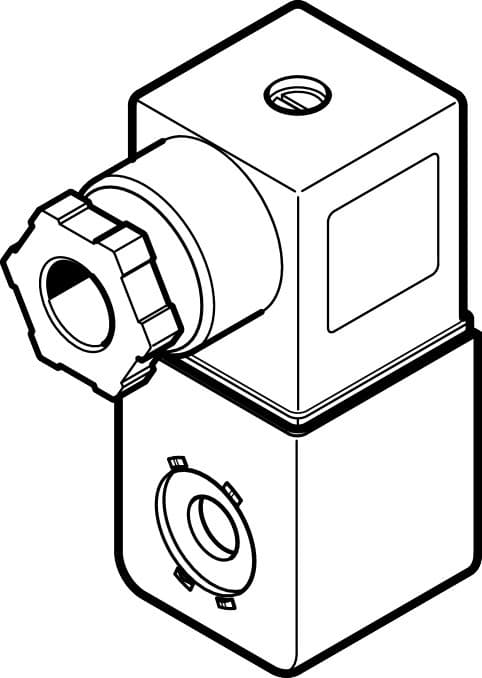

vacn-n-a1-3a-ex2-n
Selling Points
- 1Intrinsically Safe Solenoid Coil: Ensures safe operation in hazardous environments.
- 2ATEX Certification: Meets EU explosion protection standards for gas and dust.
- 3Rotatable Mounting: Can be rotated in increments of 45° on the armature tube for flexible installation.
- 4High Insulation Class: Features IP65 protection with plug socket, ensuring reliable operation.
- 5Wide Operating Range: Compatible with 24 DC, 110 AC, and 230 AC voltages, with a temperature range of -20 to +60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Duty cycle | 100% | Insulation class | F |
Enameled wire insulation class | H | Coil characteristics | 230 V AC: 50 Hz, initial power 6.9 VA, holding power 4.1 VA 230 V AC: 60 Hz, initial power 5.4 VA, holding power 3.3 VA |
Permissible voltage fluctuations | +/- 10 % | Maritime classification | See certificate |
CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
Explosion protection certification outside the EU | EPL Dc (GB) EPL Gc (GB) | Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) Zone 22 (ATEX) Zone 22 (UKEX) |
Certificate issuing authority | DNV TAA000011J | ATEX category gas | II 3G |
ATEX category for dust | II 3D | Type of ignition protection for gas | Ex nA IIC T5/T4 X Gc |
Type of (ignition) protection for dust | Ex tc IIIC T95°C/T105°C X Dc | Explosive ambient temperature | -20°C <= Ta <= +60°C |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 | Ambient temperature | -20°C 60°C |
Product weight | 95g | Electrical connection | Form A as per DIN EN 175301-803 |
Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
Housing material | Polymer Steel | Material of pin contacts | Brass |
Material of winding | Copper | Manufacturer ID | 8029138 |
Specifications may be subject to change without notice
