Product Model

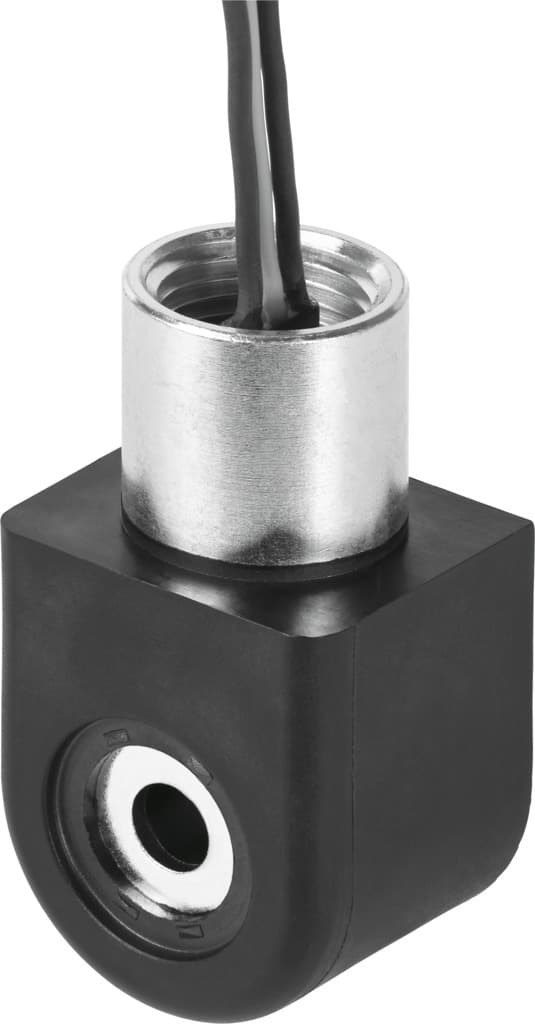

vacn-n-k11-1-0.5-u4-m
Selling Points
- 1Electric actuation for precise control.
- 2Optional mounting position for flexibility.
- 3100% duty cycle for continuous operation.
- 4H insulation material class for reliability.
- 5RoHS-compliant materials for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Duty cycle | 100% | Insulation class | H |
Enameled wire insulation class | H | Coil characteristics | 24 V DC: 4.6 W |
Permissible voltage fluctuations | +/- 10 % | Maritime classification | See certificate |
Explosion protection certification outside the EU | Class I, Div. 1 (CA) Class I, Div. 1 (US) Class I, Div. 2 (CA) Class II, Div. 1 (CA) Class II, Div. 1 (US) Class III, Div. 1 (CA) Class III, Div. 1 (US) EPL Gb (US) | Explosion prevention and protection | Class I, Div. 1 (CA) Class I, Div. 1 (US) Class I, Div. 2 (CA) Class II, Div. 1 (CA) Class II, Div. 1 (US) Class III, Div. 1 (CA) Class III, Div. 1 (US) Zone 1 (US) |
Certificate issuing authority | CSA 265489 DNV TAA000011J FM 3053936 | Type of ignition protection for gas | AEx m II T4 Ex m II T4 |
Explosive ambient temperature | -20°C <= Ta <= +60°C | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
Ambient temperature | -20°C 60°C | Product weight | 207g |
Electrical connection | Cable | Cable length | 0.61m |
Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
Housing material | Polymer Steel | Material of winding | Copper |
Manufacturer ID | 8029146 |
Specifications may be subject to change without notice
