Product Model

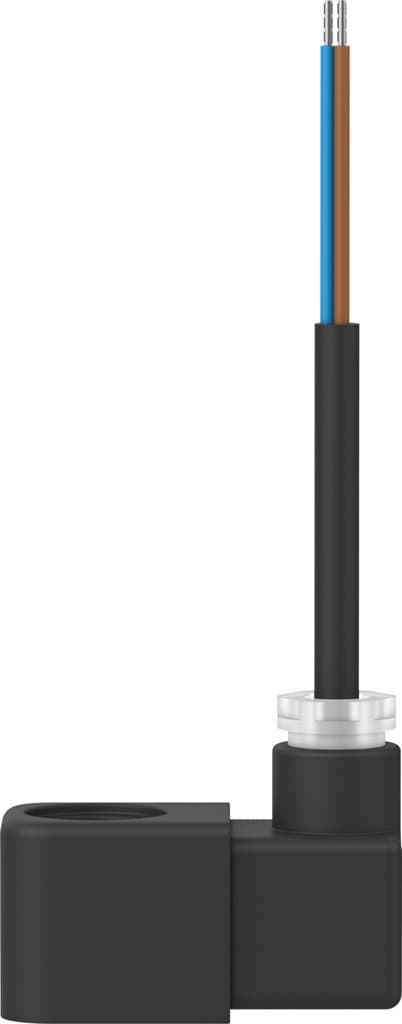

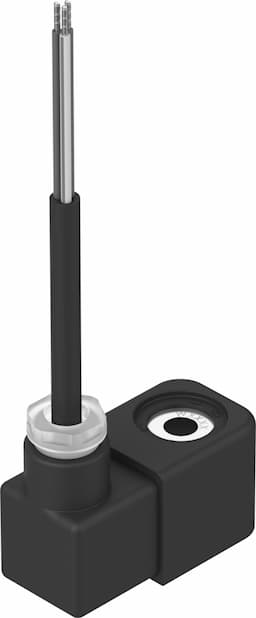

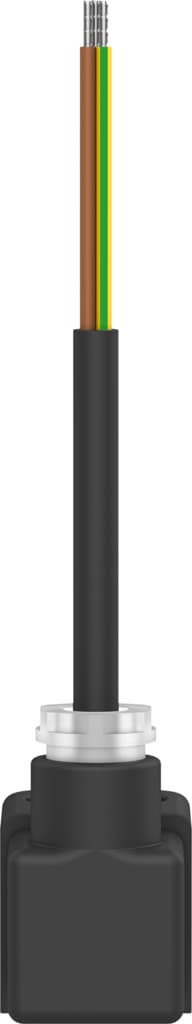

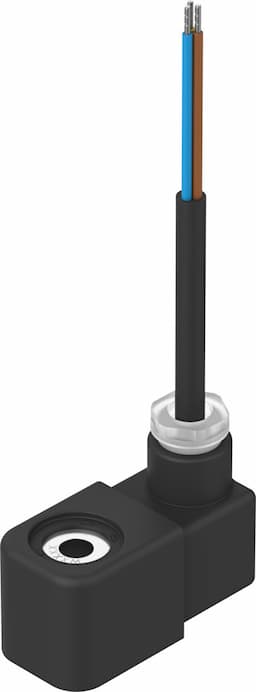

vacn-n-k1-1-10-ex4-m
Selling Points
- 1The VACN-N-K1-1-10-EX4-M solenoid coil offers 100% duty cycle, ensuring reliable operation in demanding industrial environments.
- 2With a product weight of 353 grams and a cable diameter of 7 mm, this solenoid coil is built to withstand harsh conditions and maintain its performance over time.
- 3Meets EU and UK explosion protection directives (ATEX) and CE marking standards, ensuring safe operation in hazardous environments.
- 4Operates at 24 V DC with a power consumption of 2.6 W, making it an energy-efficient solution for various automation applications.
- 5Can be mounted via a knurled nut, providing flexibility in installation and integration with different systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Duty cycle | 100% | Insulation class | F |
Enameled wire insulation class | H | Coil characteristics | 24 V DC: 2.6 W |
Permissible voltage fluctuations | +/- 10 % | Maritime classification | See certificate |
CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU RoHS directive | UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK RoHS instructions |
Explosion protection certification outside the EU | EPL Db (CN) EPL Db (GB) EPL Db (IEC-EX) EPL Gb (CN) EPL Gb (GB) EPL Gb (IEC-EX) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (CN) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (CN) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX) |
Certificate issuing authority | CCC 2021322307003994 GYJ21.1327X IECEx PTB 15.0016X PTB 14 ATEX 2027 X | ATEX category gas | II 2G |
ATEX category for dust | II 2D | Type of ignition protection for gas | Ex mb IIC T6 Gb |
Type of (ignition) protection for dust | Ex mb IIIC T80°C Db | Explosive ambient temperature | -20°C <= Ta <= +50°C |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 | Ambient temperature | -20°C 50°C |
Product weight | 762g | Electrical connection | Cable |
Cable diameter | 7mm | Cable length | 10m |
Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
Housing material | Polymer Steel | Material of winding | Copper |
Manufacturer ID | 8141606 |
Specifications may be subject to change without notice
