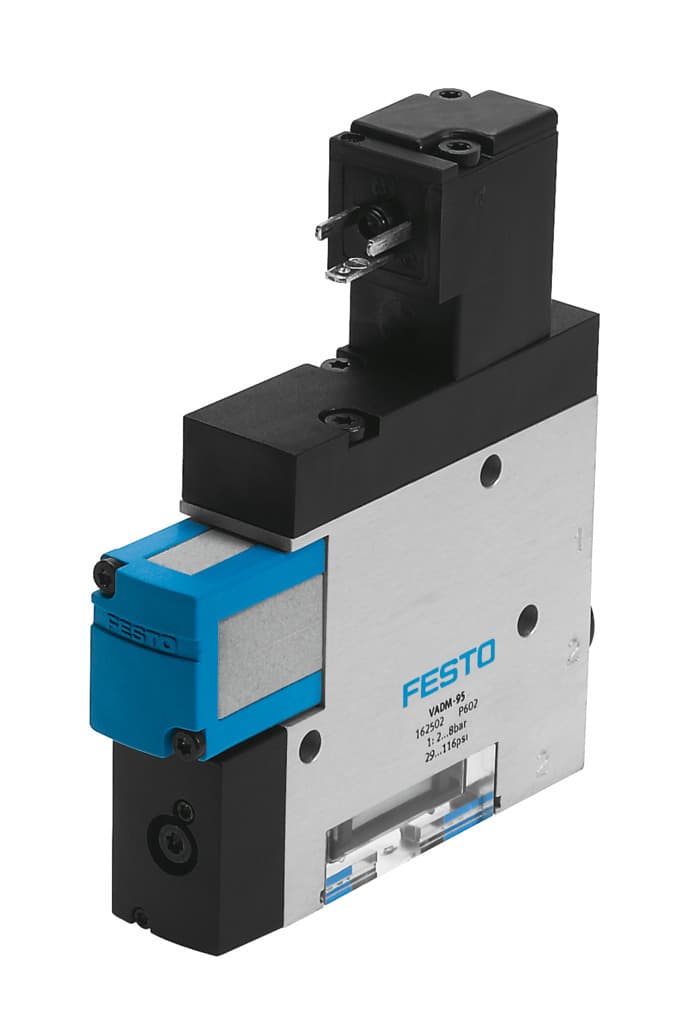

Product Model
vadm-95
Selling Points
- 1The Festo VADM-95 vacuum generator delivers high vacuum levels, making it suitable for applications that demand precise vacuum control.
- 2With a compact and sturdy design, the VADM-95 is easy to install and requires minimal space, making it ideal for various industrial settings.
- 3This vacuum generator comes with integrated functions such as an ejector pulse valve, electrical flow control valve, and non-return valve, enhancing its versatility.
- 4The VADM-95 features a reliable setting down of workpieces and is designed to operate within a temperature range of 0°C to 60°C, ensuring consistent performance.
- 5The product is maintenance-free and designed with a closed muffler construction type, reducing the need for frequent maintenance checks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 18mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Shut off valve, electric Compressed air filter |
Symbol | 00991303 | Valve function | Closed |
Operating pressure | 29psi 116psi | Max. vacuum | 85% |
Nominal operating pressure | 87psi | Air supply time at nominal operating pressure | 1.18s |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Certification | c UL us - Recognized (OL) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
Product weight | 210g | Electrical connection | Plug |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection 1 | G1/8 |
Pneumatic connection 3 | Pneumatic muffler integrated | Vacuum connection | G1/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | Brass, nickel-plated | Compressed air filter material | PA |
Material of filter housing | PC | Housing material | Wrought aluminum alloy |
Muffler material | PE POM | Material of piston | POM |
Material of jet nozzle | Brass, nickel-plated | Manufacturer ID | 162502 |
Specifications may be subject to change without notice
