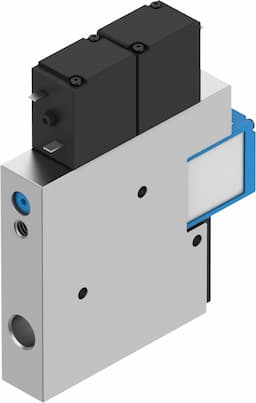

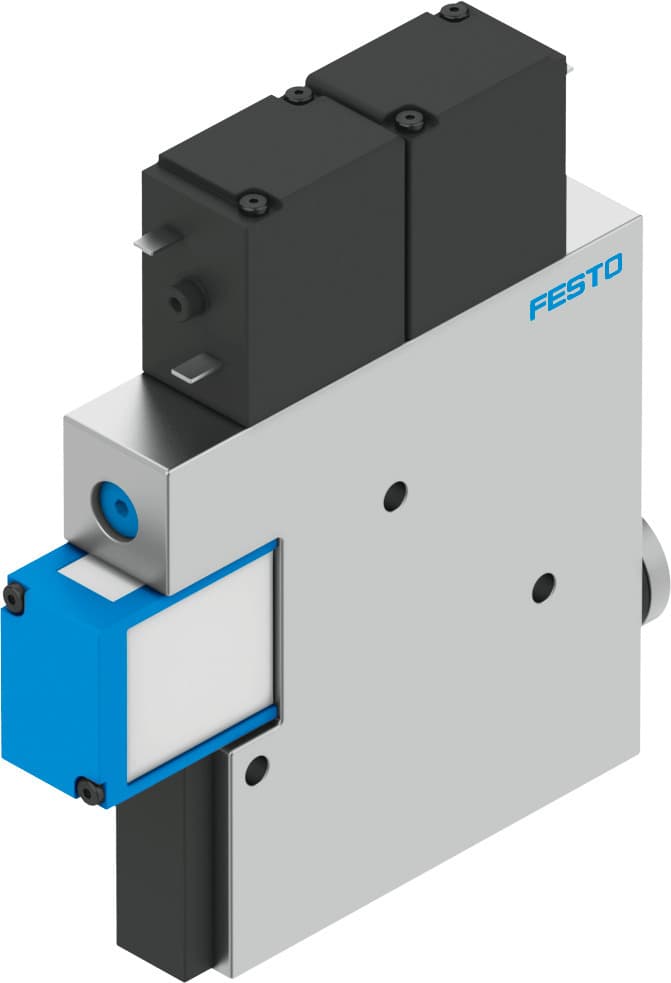

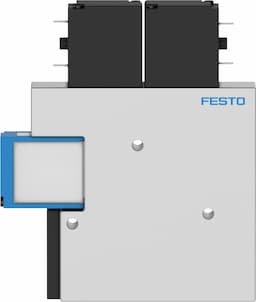

Product Model
vadmi-70
Selling Points
- 1The VADMI-70 offers a maximum vacuum of 85%, ensuring reliable operation in demanding applications.
- 2With a compact design and sturdy construction, the VADMI-70 is easy to install and maintain, minimizing space requirements.
- 3Equipped with an integrated ejector pulse valve, flow control valve, and electric on-off valve, the VADMI-70 provides comprehensive vacuum generation and monitoring in a single unit.
- 4The vacuum generator operates with compressed air to ISO 8573-1:2010 standards, ensuring consistent performance and reliability.
- 5The VADMI-70 can be mounted via through-hole or female thread, offering flexibility in installation options to suit various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 15mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Non-return valve |
Symbol | 00991305 | Valve function | Closed |
Operating pressure | 21.75psi 116psi | Max. vacuum | 85% |
Nominal operating pressure | 87psi | Air supply time at nominal operating pressure with ejector pulse | 0.59s |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Certification | c UL us - Recognized (OL) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
Product weight | 170g | Electrical connection | Plug |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection 1 | M5 |
Pneumatic connection 3 | Pneumatic muffler integrated | Vacuum connection | G1/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | Brass, nickel-plated | Compressed air filter material | PA |
Material of filter housing | PC | Housing material | Wrought aluminum alloy |
Muffler material | PE POM | Material of piston | POM |
Material of jet nozzle | Brass, nickel-plated | Manufacturer ID | 162507 |
Specifications may be subject to change without notice
