Product Model
vadmi-70-n
Selling Points

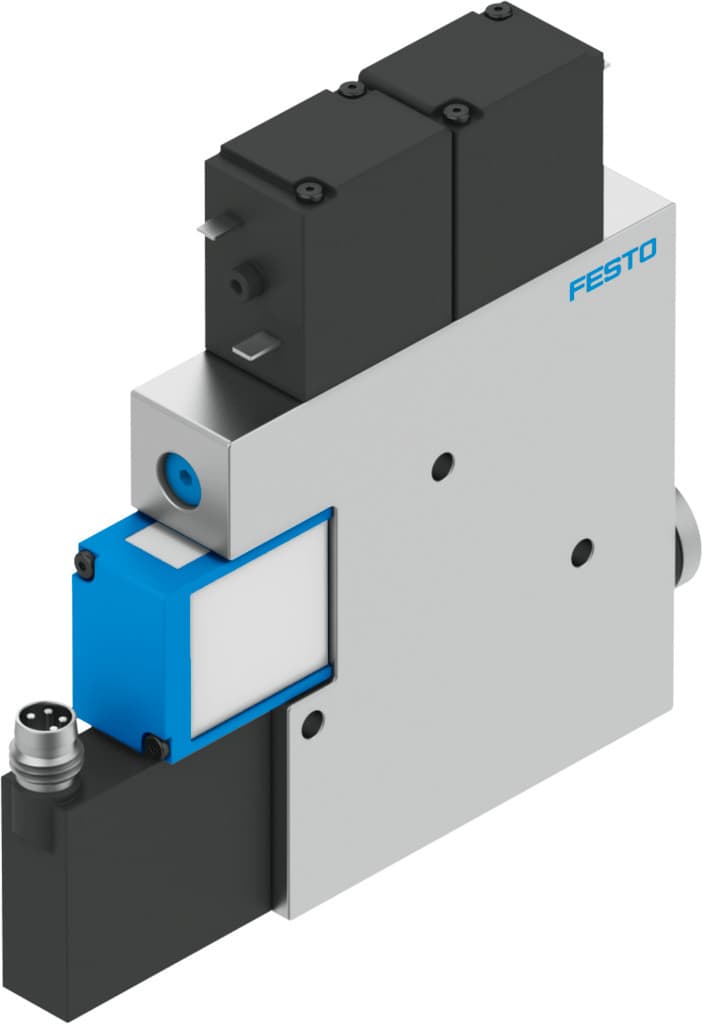

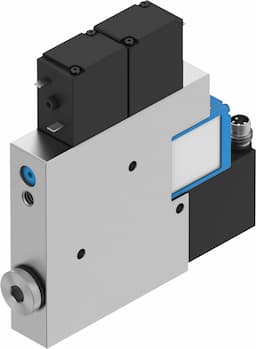

- 1The Festo VADMI-70-N vacuum generator features a compact and sturdy design, making it particularly suitable for handling operations with minimal installation work required.
- 2This vacuum generator achieves high vacuum levels, ensuring reliable workpiece transport and efficient handling operations.
- 3The VADMI-70-N comes with a built-in solenoid valve for ON/OFF control, allowing for precise vacuum generation and quick response times.
- 4Equipped with an air-saving circuit, the VADMI-70-N automatically activates vacuum generation if the vacuum level falls below the required range, ensuring continuous operation.
- 5The vacuum generator includes an integrated 40 μm filter with contamination indication, providing real-time monitoring and maintenance alerts to ensure optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 15mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Non-return valve Vacuum switch |
Measured variable | Relative pressure | Measuring principle | Piezoresistive |
Switching element function | N/O contact | Switching function | Threshold value comparator |
Symbol | 00991306 | Valve function | Closed |
Reverse polarity protection | for all electrical connections | Display type | LED |
Setting range hysteresis | -0.5bar -0.05bar | Hysteresis setting range | -7.25psi -0.725psi |
Setting options | Potentiometer | Switching status indication | Optical |
Setting range threshold value | -0.9bar 0bar | Threshold value setting range | -13.05psi 0psi |
Operating pressure | 21.75psi 116psi | Max. vacuum | 85% |
Nominal operating pressure | 87psi | Max. overload pressure | 5bar |
Air supply time at nominal operating pressure with ejector pulse | 0.59s | DC operating voltage range | 21.6V 26.4V |
Duty cycle | 100% | Switching output | NPN |
Certification | RCM compliance mark c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Degree of protection | IP65 | Ambient temperature | 0°C 50°C |
Product weight | 180g | Pressure measuring range | 0psi 14.5psi |
Electrical connection | 4-pin M8x1 Plug | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection 1 | M5 | Pneumatic connection 3 | Pneumatic muffler integrated |
Vacuum connection | G1/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | Brass, nickel-plated |
Compressed air filter material | PA | Material of filter housing | PC |
Housing material | Wrought aluminum alloy | Muffler material | PE POM |
Material of piston | POM | Material of jet nozzle | Brass, nickel-plated |
Manufacturer ID | 162527 |
Specifications may be subject to change without notice
