Product Model

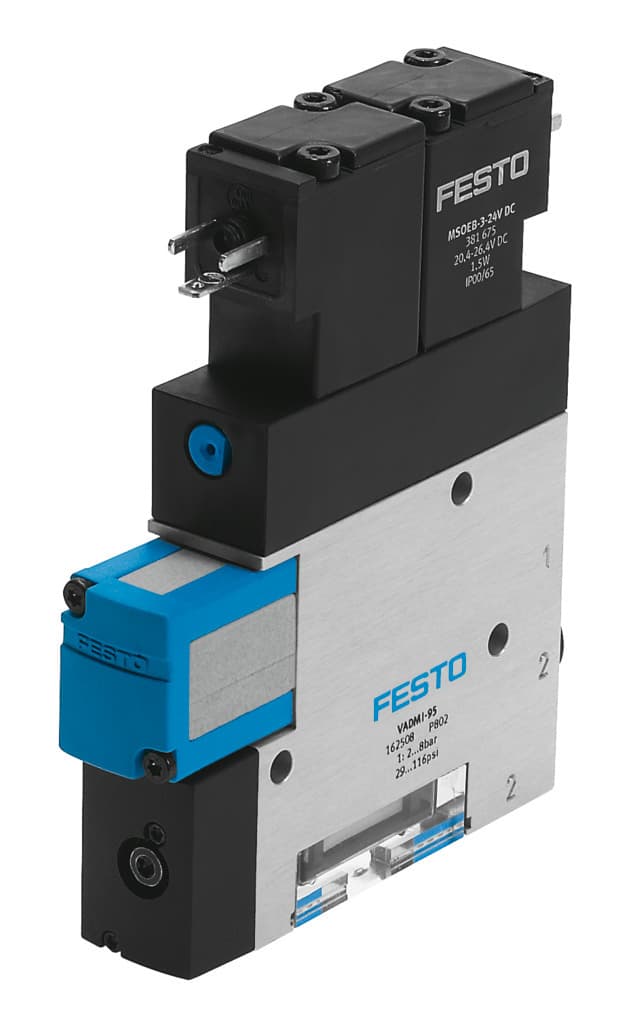

vadmi-95
Selling Points
- 1High Vacuum Performance: The VADMI-95 vacuum generator achieves a maximum vacuum of 85%, making it ideal for applications requiring strong suction power.
- 2Compact Design: With a nominal size of 0.95 mm Laval nozzle and 18 mm grid dimension, the VADMI-95 is compact and easy to integrate into various systems.
- 3Integrated Functions: This vacuum generator includes an electric ejector pulse valve, flow control, non-return valve, shut-off electric valve, and vacuum switch, ensuring comprehensive functionality.
- 4Operational Flexibility: The VADMI-95 operates within a temperature range of 0°C to 60°C and supports compressed air to ISO 8573-1:2010 standards, making it versatile for different environments.
- 5Reliable and Durable: Constructed with RoHS-compliant materials, including NBR seals, nickel-plated brass receiver nozzles, and POM pistons, the VADMI-95 ensures reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 18mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Non-return valve |
Symbol | 00991305 | Valve function | Closed |
Operating pressure | 29psi 116psi | Max. vacuum | 85% |
Nominal operating pressure | 87psi | Air supply time at nominal operating pressure with ejector pulse | 2.04s |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Certification | c UL us - Recognized (OL) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
Product weight | 240g | Electrical connection | Plug |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection 1 | G1/8 |
Pneumatic connection 3 | Pneumatic muffler integrated | Vacuum connection | G1/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | Brass, nickel-plated | Compressed air filter material | PA |
Material of filter housing | PC | Housing material | Wrought aluminum alloy |
Muffler material | PE POM | Material of piston | POM |
Material of jet nozzle | Brass, nickel-plated | Manufacturer ID | 162508 |
Specifications may be subject to change without notice
