Product Model

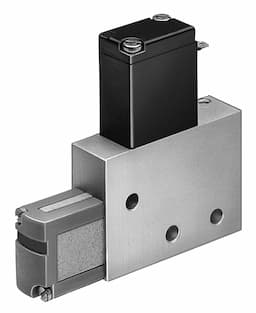

vad-myb-1/8
Selling Points
- 1The Festo VAD-MYB-1/8 features a high vacuum ejector characteristic, ensuring efficient vacuum generation.
- 2The vacuum generator offers an optional mounting position, providing flexibility in installation.
- 3The product includes an integrated electric on-off valve for precise control over vacuum operations.
- 4The T-shape construction of the VAD-MYB-1/8 enhances its durability and ease of use.
- 5Designed for compressed air to ISO 8573-1:2010 [7:4:4], this vacuum generator ensures reliable performance in various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Mounting position | Any |
Ejector characteristics | High vacuum | Integrated function | Shut off valve, electric |
Structural design | T-shape | Symbol | 00991492 |
Operating pressure | 1.5bar 8bar | Max. vacuum | 85% |
Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | 0°C 40°C |
Degree of protection | IP65 | Ambient temperature | 0°C 40°C |
Product weight | 80g | Electrical connection | Plug |
Type of mounting | With internal thread | Pneumatic connection 1 | M5 |
Vacuum connection | G1/8 | Housing material | Aluminum |
Manufacturer ID | 35553 |
Specifications may be subject to change without notice
