Product Model

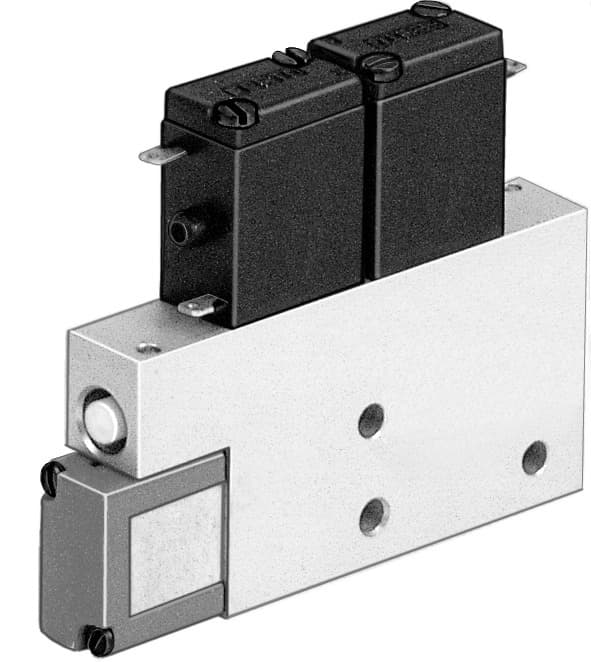

vad-myb-i-1/8
Selling Points
- 1The VAD-MYB-I-1/8 vacuum generator delivers high vacuum levels, making it suitable for demanding applications.
- 2Equipped with an electric ejector pulse valve and an on-off valve, this product offers seamless control and efficiency.
- 3Constructed from sturdy aluminum, the VAD-MYB-I-1/8 ensures long-lasting performance and reliability.
- 4Available in optional mounting positions, the VAD-MYB-I-1/8 can be easily integrated into various systems.
- 5Operating with compressed air to ISO 8573-1:2010 [7:4:4], this product meets stringent industry standards for quality and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Mounting position | Any |
Ejector characteristics | High vacuum | Integrated function | Ejector pulse valve, electric Shut off valve, electric |
Structural design | T-shape | Symbol | 00991493 |
Operating pressure | 1.5bar 8bar | Max. vacuum | 90% |
Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | 0°C 50°C | Degree of protection | IP65 |
Ambient temperature | 0°C 50°C | Electrical connection | Plug |
Type of mounting | With internal thread | Pneumatic connection 1 | M5 |
Vacuum connection | G1/8 | Housing material | Aluminum |
Manufacturer ID | 35530 |
Specifications may be subject to change without notice
