Product Model

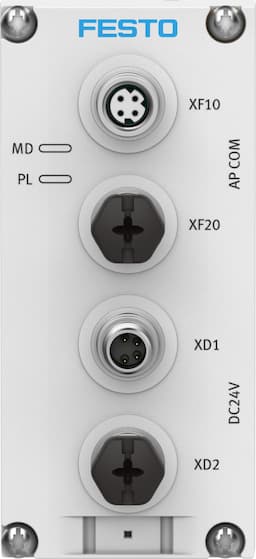

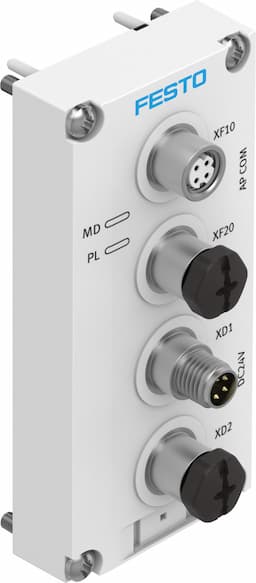

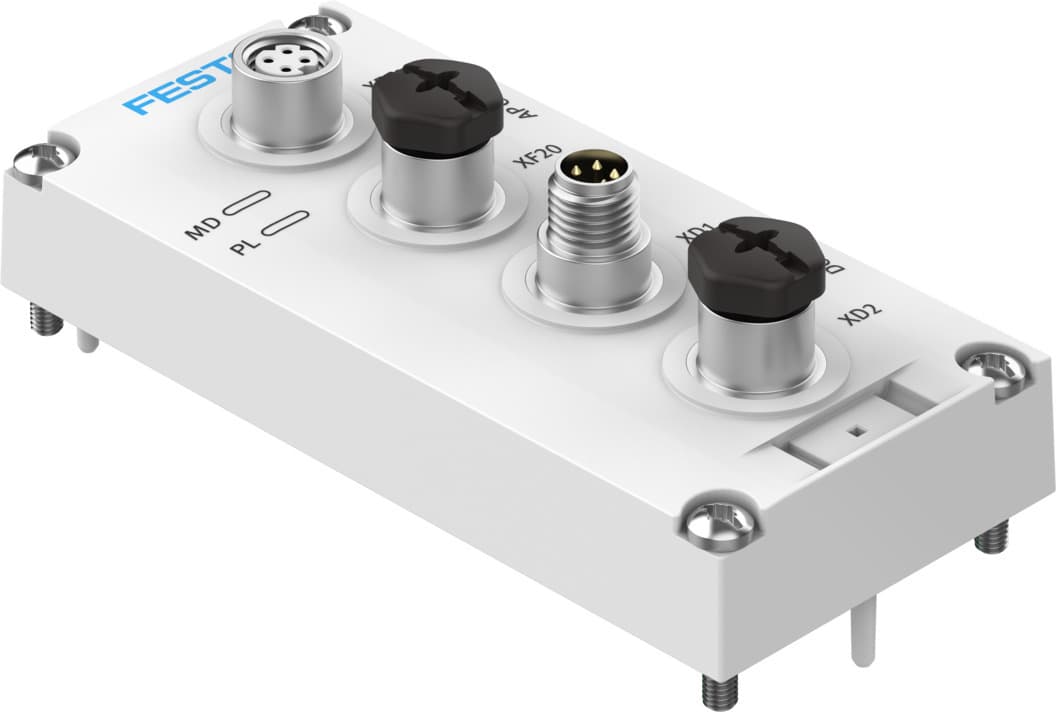

vaem-l1-s-12-ap
Selling Points
- 1Advanced diagnostics via LED for module and load power supply.
- 2Robust protection against overvoltage and undervoltage conditions.
- 3High degree of protection with IP65 and IP67 ratings.
- 4Compact dimensions (42 x 91 x 30 mm) for easy integration.
- 5Compatible with 24V DC operating voltage and 10MS power failure bridging.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimensions W x L x H | 42 mm x 91 mm x 30 mm | Connection position | Top |
Diagnostics via LED | Diagnostics per module Load power supply | Diagnose per internal communication | Load switch-off Electronics/sensors overvoltage Load overvoltage Electronics/sensors undervoltage Load undervoltage |
Max. no. of valve positions | 12 | Max. no. of solenoid coils | 24 |
Reverse polarity protection | yes | Module parameters | Configuration of voltage monitoring, load supply PL Response in error state |
Fuse protection (short circuit) | Internal electronic fuse per channel | Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 34 mA |
Intrinsic current consumption at nominal operating voltage load | Typically 16 mA | Nominal operating voltage DC for electronics/sensors | 24V |
Nominal operating voltage DC load | 24V | Power failure buffering | 10ms |
Power failure buffering of load | 3ms | Permissible voltage fluctuations for electronics/sensors | ± 25 % |
Permissible voltage fluctuations load | ± 10% | Max. power supply | 2 x 4 A (external fuse required) |
Power supply, function | Incoming electronics/sensors and load | Power supply, type of connection | Plug |
Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 | Power supply, number of pins/wires | 4 |
Voltage forwarding, function | Outgoing electronics/sensors and load | Voltage forwarding, connection type | Socket |
Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 | Voltage forwarding, number of pins/wires | 4 |
Communication interface, connection type | 2x socket | Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
Communication interface, number of pins/wires | 4 | Communication interface, function | System communication XF10 IN / XF20 OUT |
Communication interface, protocol | AP-COM | Communication interface, shielding | yes |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
KC characters | KC EMC | Max. cable length | 50 m system communication |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Relative air humidity | 5 - 95 % Non-condensing |
Protection against direct and indirect contact | PELV SELV | Note regarding operating voltage | SELV/PELV fixed power supplies required Note voltage drop |
Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state Unused connections sealed |
Ambient temperature | -5°C 60°C | Certification | RCM compliance mark c UL us - Recognized (OL) |
Nominal altitude of use above sea level | <= 2000 m NHN | Product weight | 76g |
Type of mounting | Screwed tightly | Housing material | PA-reinforced |
Threaded sleeve material | Brass, nickel-plated | Note on materials | RoHS-compliant |
Manufacturer ID | 8081922 |
Specifications may be subject to change without notice
