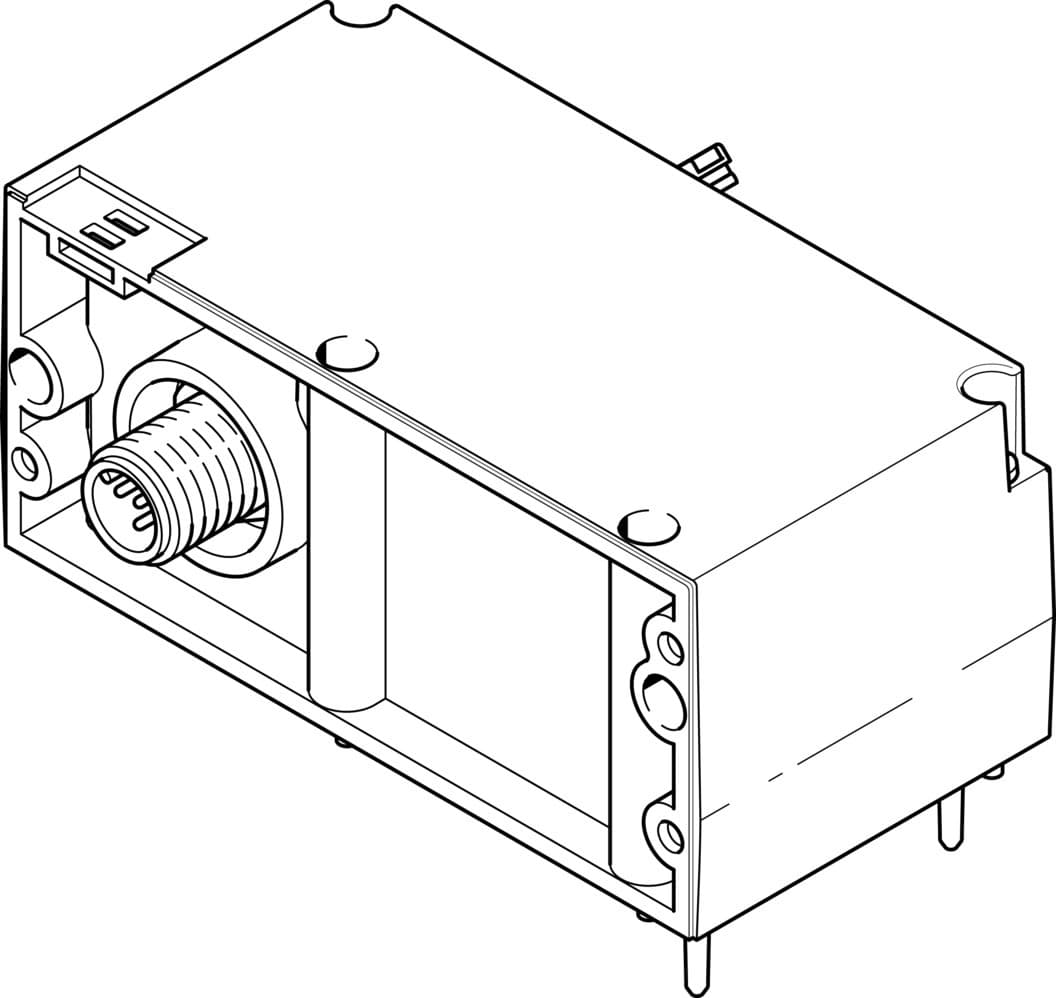

Product Model
vaem-l1-s-16-ptl
Selling Points
- 1Designed for continuous operation in industrial environments.
- 2Ensures error-free data transmission between IO-Link masters and VTUG valve terminals.
- 3Simple assembly with retaining screws provided on the terminal strip of the valve terminal VTUG.
- 4Displays status and error messages via LED displays, forwarding diagnostic messages to the IO-Link master or I-Port master.
- 5Meets IP67 protection standards, suitable for harsh industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
KC characters | KC EMC | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Certification | RCM compliance mark c UL us - Recognized (OL) |
Product weight | 100g | Note on materials | RoHS-compliant |
Manufacturer ID | 574208 |
Specifications may be subject to change without notice
