Product Model
vaem-s6-c-s10-r5
Selling Points

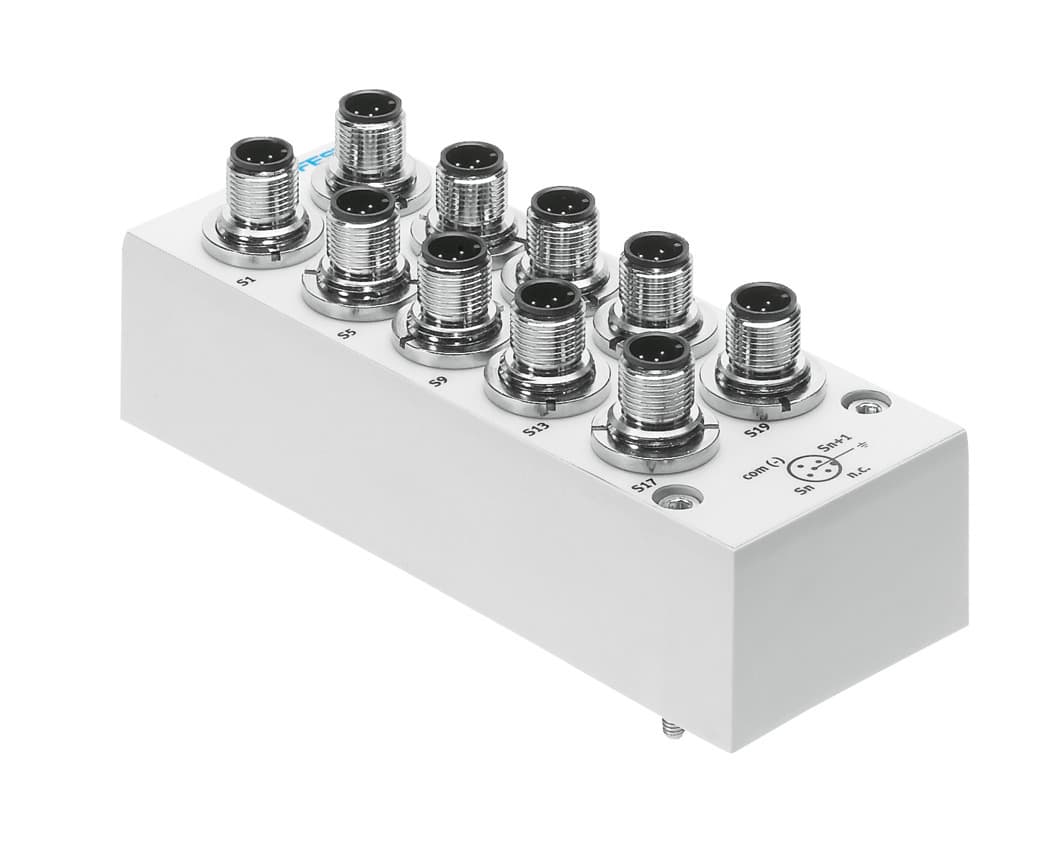

- 1The VAEM-S6-C-S10-R5 pneumatic valve cover by Festo supports up to 10 bistable and 20 monostable valve positions, making it versatile for various industrial applications.
- 2This product operates at a nominal voltage of 24 V DC with permissible voltage fluctuations of +/- 10%, ensuring reliable performance in diverse environments.
- 3With a corrosion resistance class of 0 (no corrosion stress) and an IP65/NEMA 4 protection class, the VAEM-S6-C-S10-R5 is designed to withstand harsh industrial conditions.
- 4The valve cover features 10 electrical connections with a 5-pin M12 plug, facilitating easy integration into your system.
- 5Suitable for ambient temperatures ranging from -5°C to 50°C, this product ensures consistent performance across a wide temperature range, making it ideal for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. no. of valve positions | 10 for bistable pneumatic valves 20 for monostable pneumatic valves | Max. residual current | 10A |
Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 230g | Number of electrical connections | 10 |
Electrical connection | 5-pin M12 Plug | Housing material | PA |
Manufacturer ID | 549049 |
Specifications may be subject to change without notice
