Product Model
vaem-s6-c-s6-r5
Selling Points

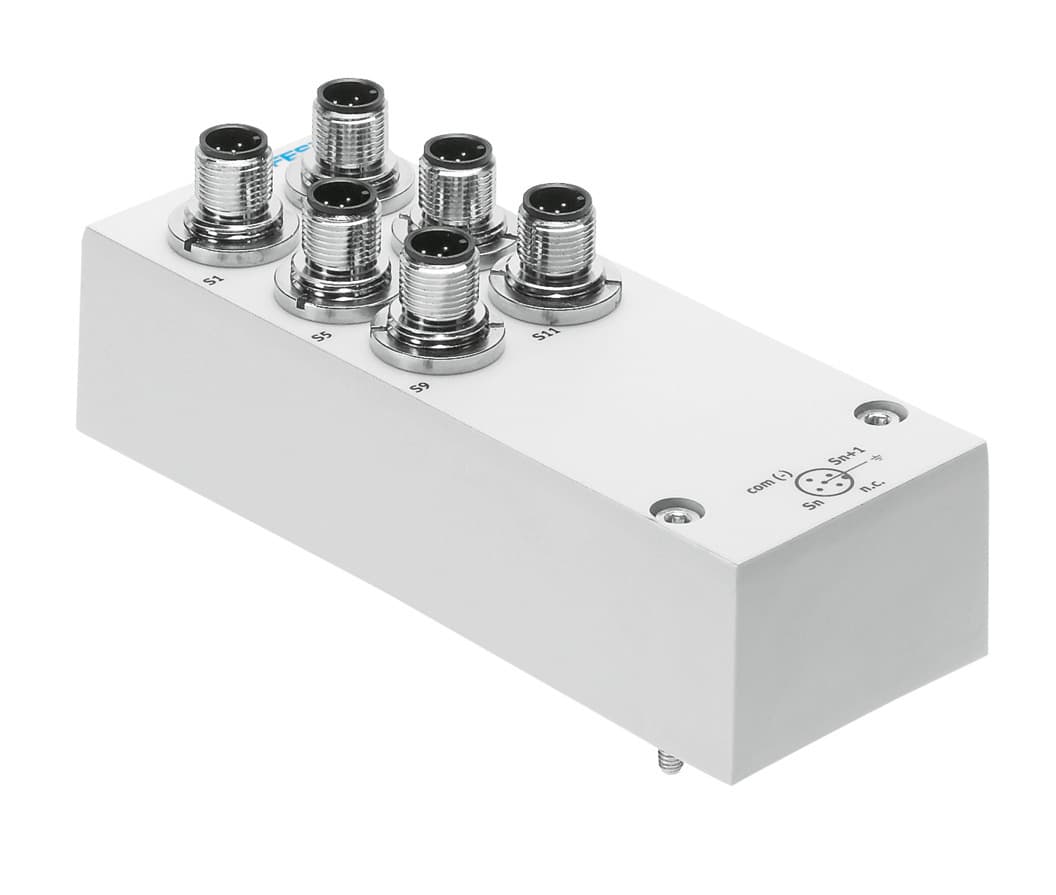

- 1The VAEM-S6-C-S6-R5 valve cover supports up to 12 monostable and 6 bistable pneumatic valves, making it versatile for various industrial applications.
- 2This cover operates at a nominal voltage of 24 V DC with permissible voltage fluctuations of +/- 10%, ensuring reliable operation in diverse environments.
- 3With a maximum resultant current of 10 A and a corrosion resistance class of CRC 0, the VAEM-S6-C-S6-R5 is designed to withstand harsh industrial conditions.
- 4The cover features an IP65 degree of protection and NEMA 4 rating, ensuring it is dust-protected and suitable for use in various industrial settings.
- 5The VAEM-S6-C-S6-R5 is made from high-quality PA housing material, weighing 200 g and having 6 electrical connections via a 5-pin M12 plug, facilitating easy integration into pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. no. of valve positions | 12 for monostable pneumatic valves 6 for bistable pneumatic valves | Max. residual current | 10A |
Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 200g | Number of electrical connections | 6 |
Electrical connection | 5-pin M12 Plug | Housing material | PA |
Manufacturer ID | 549048 |
Specifications may be subject to change without notice
