Product Model

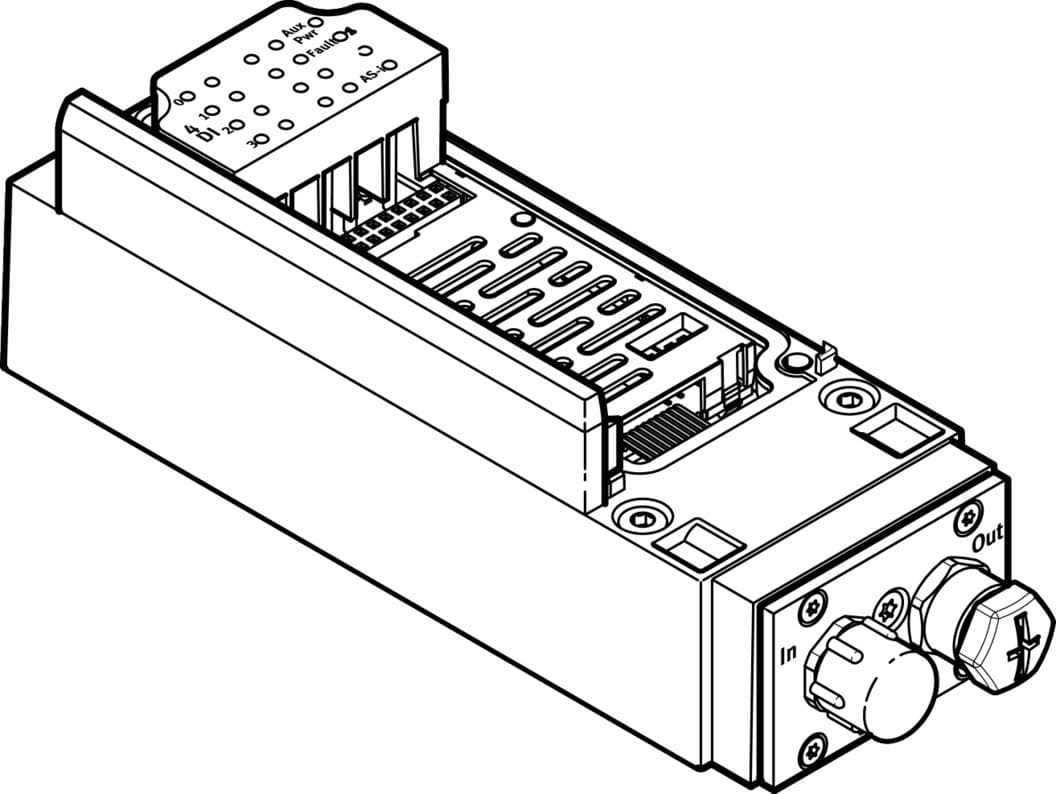

vaem-s6-s-fas-8-8e
Selling Points
- 1The Festo VAEM-S6-S-FAS-8-8E is an AS-i module that offers a fieldbus interface with a socket and plug connector, ensuring reliable communication in industrial automation systems.
- 2This module features device-specific diagnostics, including short circuit/overload detection and undervoltage protection, ensuring the integrity of your system.
- 3With a maximum number of valve positions of 4 with bistable valves and 8 with monostable valves, the VAEM-S6-S-FAS-8-8E supports various valve configurations, enhancing flexibility in automation setups.
- 4The module provides reverse polarity protection for all electrical operating voltage connections, ensuring safe operation and reducing the risk of damage to the device.
- 5The Festo VAEM-S6-S-FAS-8-8E is designed with a robust construction, meeting IP65 protection standards and operating within a temperature range of -5°C to 50°C, making it suitable for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Fieldbus interface | Socket, M12x1, 4-pin Plug, M12x1, 4-pin | Device-specific diagnostics | Short circuit/overload of inputs Undervoltage Via peripheral error: |
Mounting position | Any | Max. no. of valve positions | 4 for bistable pneumatic valves 8 for monostable pneumatic valves |
Max. no. of solenoid coils | 8 | Reverse polarity protection | for all electrical operating voltage connections |
Control elements | DIL switch | Number of slaves per device | 2 |
AS-Interface DC operating voltage range | 26.5V 31.6V | Information concerning load voltage | Via load voltage connection (24 V DC) |
Load voltage range DC | 21.6V 26.4V | Max. no. of outputs | 8 |
Max. number of inputs | 8 | Nominal operating voltage DC AS-Interface | 26.5V |
Nominal voltage DC | 24V | Nominal operating voltage DC | 24V |
AS interface residual ripple | <= 20 mVss | Load voltage residual ripple | 4 Vss |
Switching level | Signal 0: <= 5 V Signal 1: >= 11 V | Permissible voltage fluctuations | +/- 10 % |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Relative air humidity | 0 - 90 % | Degree of protection | IP65 In mounted state |
Ambient temperature | -5°C 50°C | Product weight | 300g |
Electrical actuation | Fieldbus | Input switching logic | PNP (positive switching) |
Electrical connection | Via CPX | Addressing range | 1 ... 31 (0) Setting using AS-Interface addressing device |
Galvanic isolation fieldbus interface | Optocoupler | LED display (bus-specific) | AS-i: AS-Interface mode Aux/Pwr: AS-Interface power supply Fault: AS interface fault |
LED display (product-specific) | 0 ... 7: switching status of inputs 12/14: switching status of pneumatic valves (on pneumatic valve) | Product identification | ID1=Fh ID2=Eh |
Seals material | NBR PUR | Housing material | PA |
Note on materials | RoHS-compliant | Manufacturer ID | 549045 |
Specifications may be subject to change without notice
