Product Model
vaf-db-1/4
Selling Points

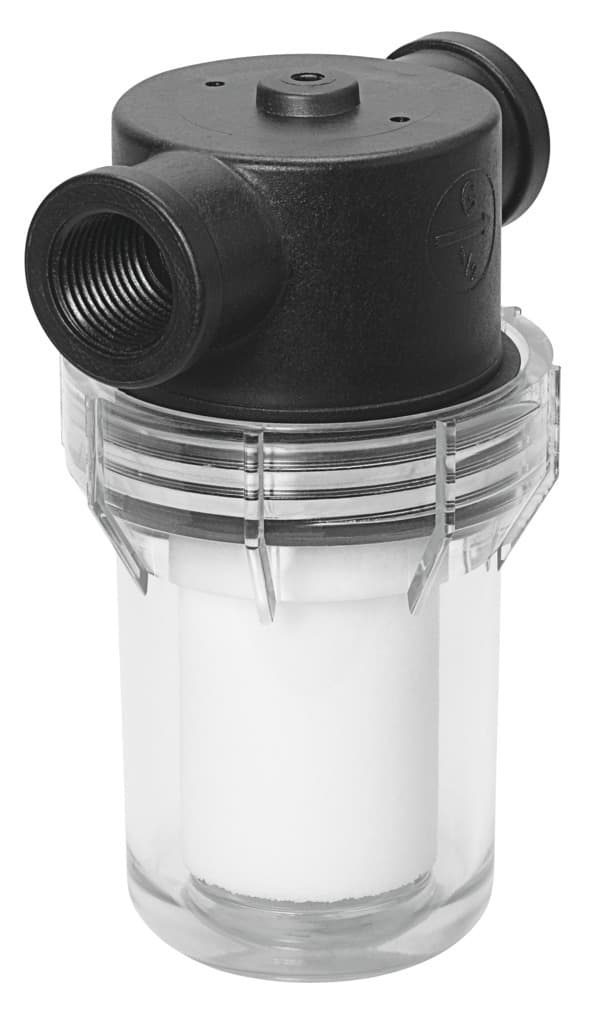

- 1The Festo VAF-DB-1/4 vacuum filter offers a vertical mounting position, ensuring easy installation in various pneumatic systems.
- 2With a filtration grade of 80 μm, this filter effectively captures contaminants, maintaining the cleanliness of your system.
- 3The filter operates within a pressure range of -0.95 to 0 bar, making it suitable for use in open vacuum systems.
- 4Constructed from RoHS-compliant materials, including NBR seals and a PE filter, this filter ensures durability and safety.
- 5The VAF-DB-1/4 is designed for in-line installation via wall or surface brackets, providing flexibility in system design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Vertical | Grade of filtration | 80μm |
Symbol | 00991483 | Operating pressure | -0.95bar 0bar |
Information on operating pressure | Only for use in open vacuum systems | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | Ambient temperature | -5°C 50°C |
Max. tightening torque | 8.7Nm | Product weight | 71g |
Type of mounting | Line installation With wall/surface bracket | Pneumatic connection | G1/4 |
Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Compressed air filter material | PE |
Housing material | PP-reinforced | Material of bowl | PA |
Ejector pulse suitability | 7bar | Manufacturer ID | 547261 |
Specifications may be subject to change without notice
