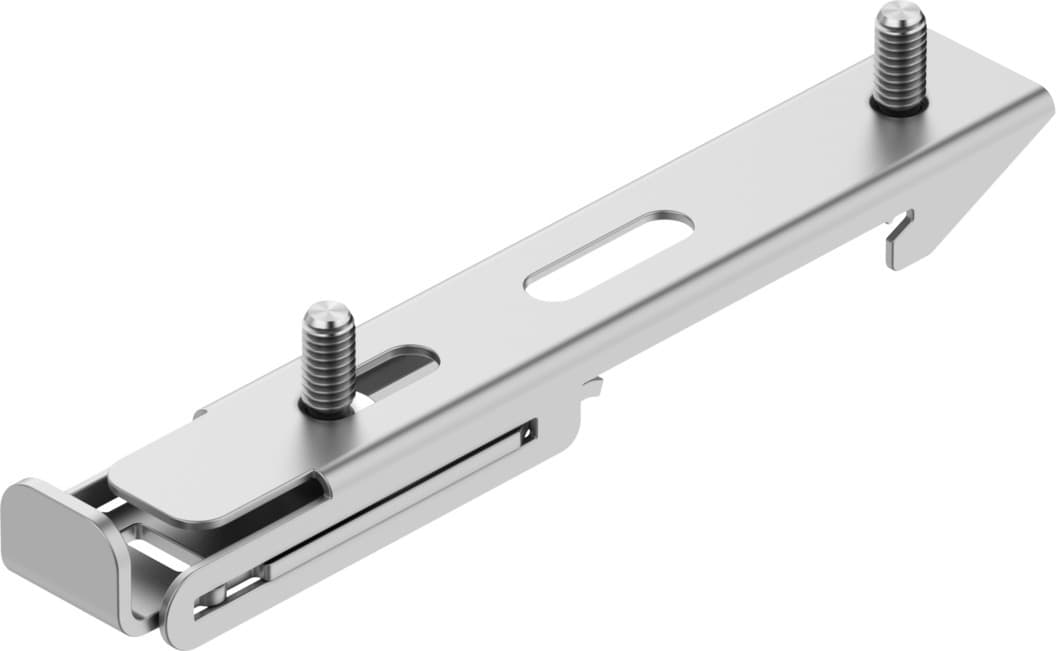

Vame-XA-H Tie Rod by Festo: High-Quality, Modular Pneumatic Solution

Selling Points

1The Vame-XA-H tie rod is made from high-alloy stainless steel, ensuring durability and resistance to corrosion.
2This tie rod is part of Festo's modular system, allowing for easy extension and configuration to meet various pneumatic needs.
3With a length of 61 mm, the Vame-XA-H is designed for compact installations, ideal for space-saving applications.
4Available with internal hexagon and male/female threads (M4), the Vame-XA-H offers versatile mounting options for seamless integration.
5The tie rod features moderate corrosion resistance, making it suitable for applications where some level of corrosion stress is expected.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Pack size	2	Vibration resistance	Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Nominal tightening torque	1.9Nm
Tolerance for nominal tightening torque	± 20%	Product weight	24.2g
Type of mounting	Threaded	H-rail mounting material	High-alloy stainless steel
Note on materials	RoHS-compliant	Mounting material	High-alloy stainless steel
Manufacturer ID	8191782

Specifications may be subject to change without notice
