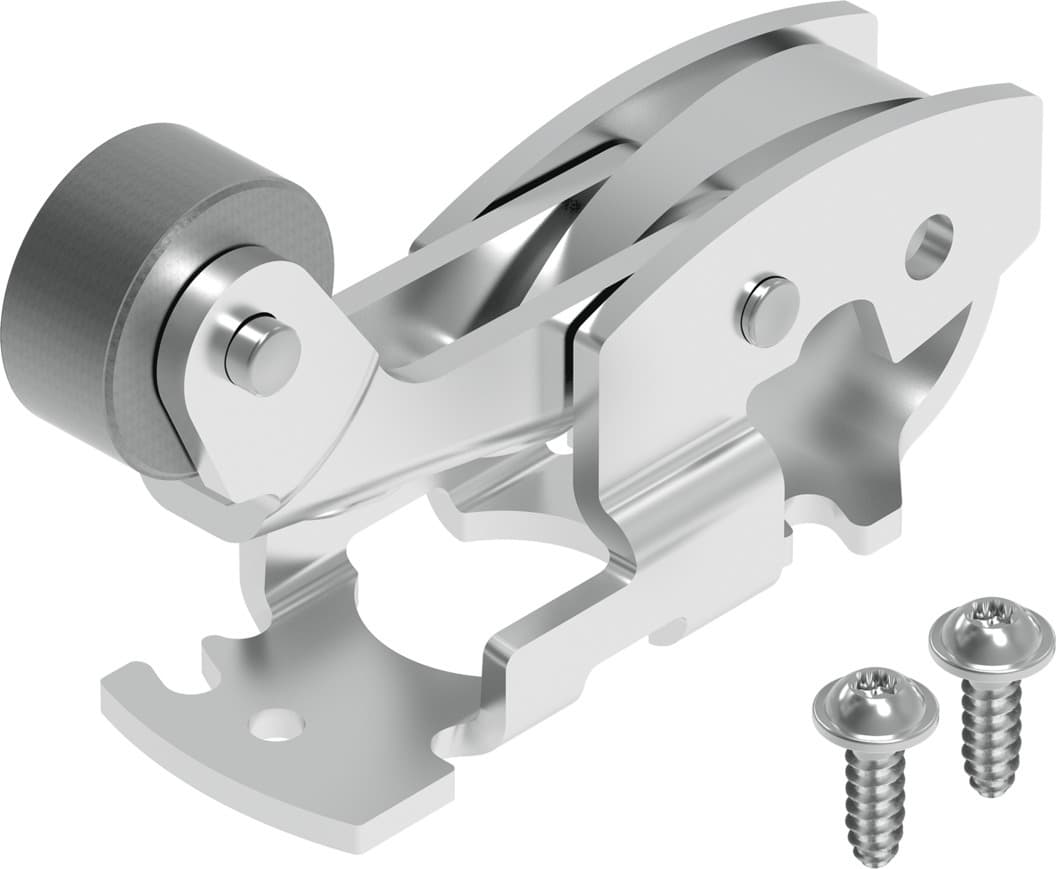

Product Model
vaom-r4-20-d1-32
Selling Points
- 1Mechanical Actuation: The VAOM-R4-20-D1-32 features mechanical actuation for reliable operation.
- 2Direct Piloting: Direct type of piloting ensures precise control over pneumatic relays.
- 32.5mm Thread Size: Compatible with Festo 3/2-way mechanically actuated VMEF Series Valves with 2.5mm thread size.
- 4Operational Temperature Range: Designed to operate between -10°C and +60°C for versatility in various environments.
- 5Corrosion Resistance: Low corrosion stress (CRC 1) ensures durability in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 20mm | Actuation type | Mechanical |
Mounting position | Movement plane | Structural design | Roller lever |
Type of control | Direct | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Type of mounting | Screwed tightly | Note on materials | RoHS-compliant |
Actuator attachments material | Steel, galvanized | Manufacturer ID | 8049235 |
Specifications may be subject to change without notice
