Product Model

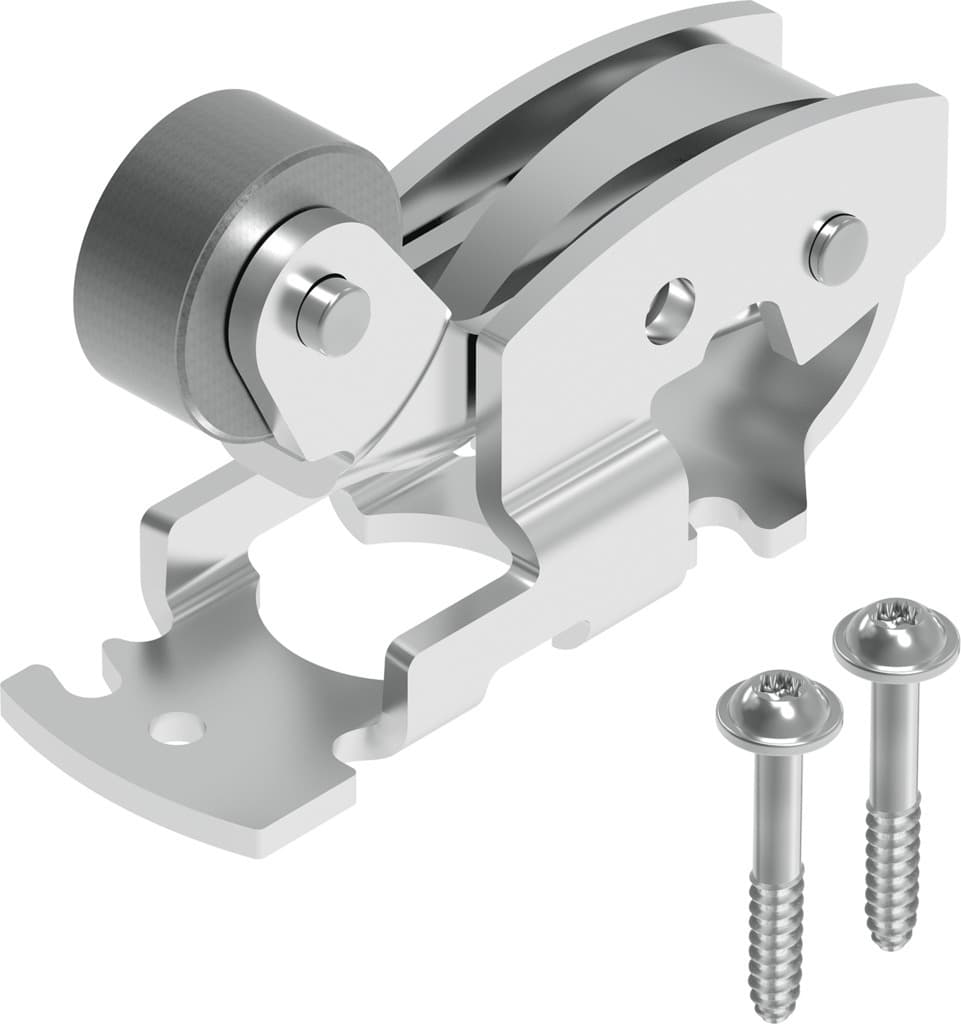

vaom-r4-20-d1-52
Selling Points
- 1Direct control for precise movement.
- 2Low corrosion stress with CRC class 1.
- 320 mm width for space-efficient installations.
- 4Environmentally friendly, RoHS-compliant materials.
- 5Screw-clamped for secure attachment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 20mm | Actuation type | Mechanical |
Mounting position | Movement plane | Structural design | Roller lever |
Type of control | Direct | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Type of mounting | Screwed tightly | Note on materials | RoHS-compliant |
Actuator attachments material | Steel, galvanized | Manufacturer ID | 8049233 |
Specifications may be subject to change without notice
