Product Model
vas-10-m5-si-b
Selling Points

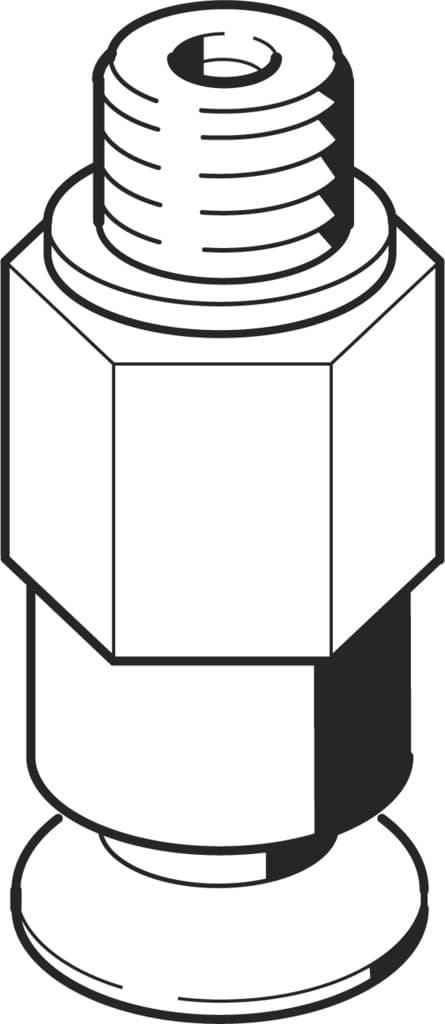

- 1The Festo VAS-10-M5-SI-B vacuum suction cup is designed for cold and high-temperature applications, ensuring reliable performance in various environments.
- 2This suction cup features a round, flat bellows shape with a 10mm diameter and a nominal size of 2mm, providing a secure grip.
- 3The VAS-10-M5-SI-B is equipped with a M5 threaded pneumatic port, making it easy to connect and use in various automation systems.
- 4The suction cup is made from silicone (VMQ) and features a wrought aluminum alloy screwed trunnion, ensuring durability and resistance to corrosion.
- 5The Festo VAS-10-M5-SI-B operates within a wide ambient air temperature range of -40°C to +200°C, making it suitable for diverse industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 1.1mm | Nominal width | 2mm |
Suction cup diameter | 10mm | Suction cup volume | 0.12cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round, flat |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 3.7N |
Product weight | 2g | Type of mounting | Via vacuum connection |
Vacuum connection | M5 | Color | Transparent |
Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 1385610 |
Specifications may be subject to change without notice
