Product Model
vas-8-m5-si-b
Selling Points

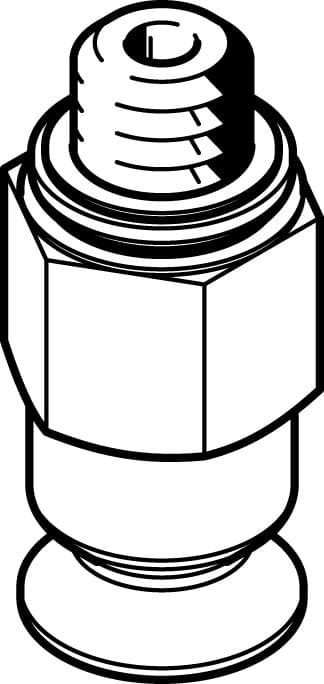

- 1The Festo VAS-8-M5-SI-B suction cup features a round flat suction shape with a diameter of 8 mm, ensuring a secure grip in various applications.
- 2This suction cup is made from high-quality VMQ (Silicone) material, which provides excellent durability and resistance to corrosion, making it suitable for harsh environments.
- 3With a nominal operating pressure of -0.7 bar and an operating pressure range of -0.95 to -0.7 bar, the VAS-8-M5-SI-B is designed to handle atmospheric air effectively, ensuring consistent performance.
- 4The suction cup has a holding force of 2.60 N at the nominal operating pressure, providing a reliable grip in various industrial settings.
- 5The Festo VAS-8-M5-SI-B suction cup is compatible with M5 vacuum connections, offering flexibility in installation and integration with other Festo components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 0.9mm | Nominal width | 2mm |
Suction cup diameter | 8mm | Suction cup volume | 0.095cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round, flat |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 2.6N |
Product weight | 2g | Type of mounting | Via vacuum connection |
Vacuum connection | M5 | Color | Transparent |
Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 1377781 |
Specifications may be subject to change without notice
