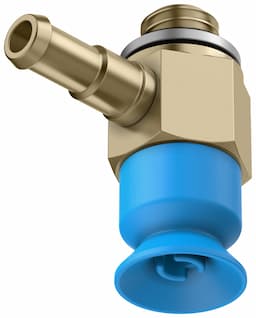

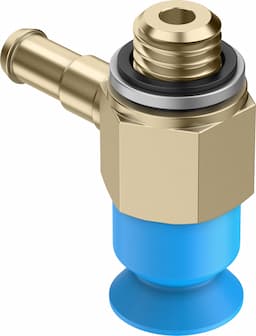

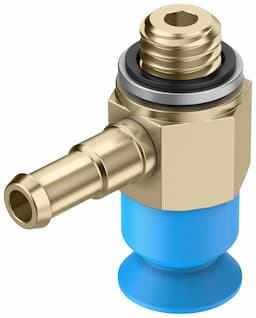

Product Model
vas-8-m5-s-pur-b
Selling Points
- 18mm diameter suction cup with M5 vacuum port for versatile use.
- 2Height compensator for precise positioning and stability.
- 3Round, flat suction cup shape for effective gripping.
- 4Operating pressure range from -0.095 MPa to 0 MPa.
- 5RoHS-compliant materials ensure environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 0.9mm | Nominal width | 2mm |
Suction cup diameter | 8mm | Suction cup volume | 0.095cm3 |
Effective suction cup diameter | 7.1mm | Connection position | At the side |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 2.8N |
Product weight | 4g | Type of mounting | Via vacuum connection |
Vacuum connection | M5 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass |
Note on materials | RoHS-compliant | Suction cup material | TPE-U(PU) |
Manufacturer ID | 8025969 |
Specifications may be subject to change without notice
