Product Model

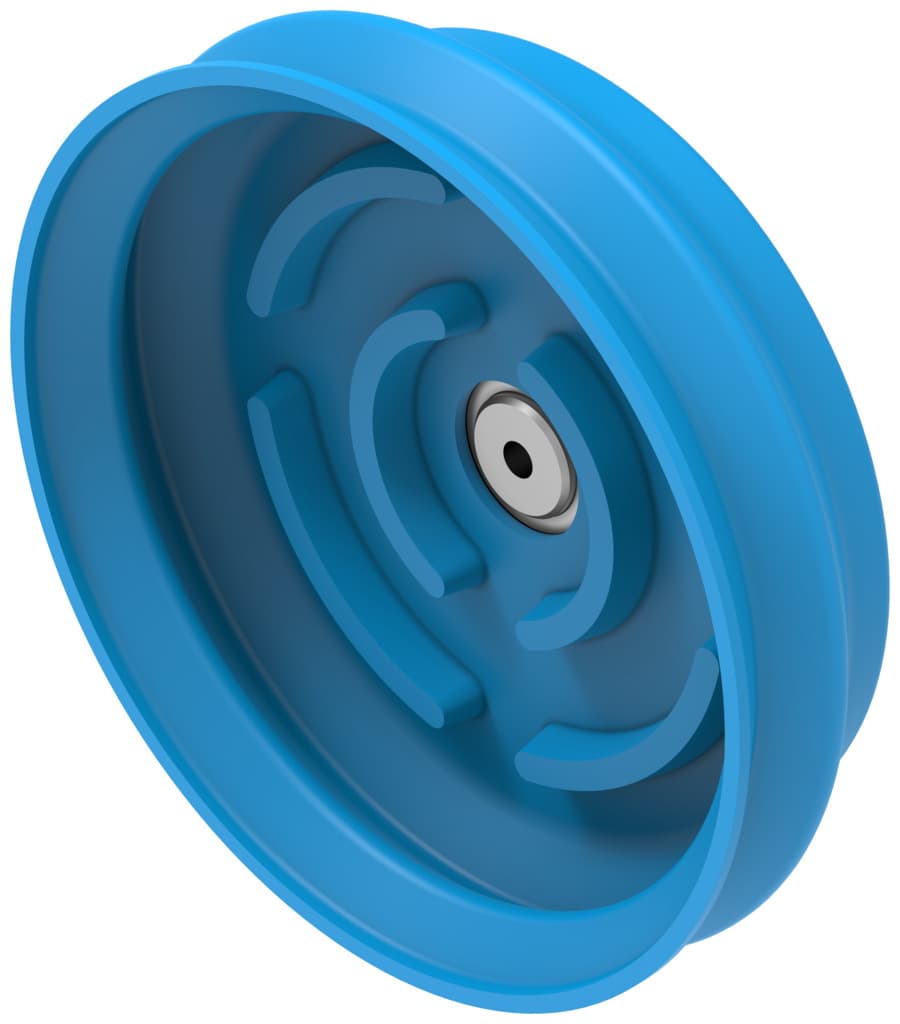

vasb-100-1/4-pur-b

Selling Points
- 1The Vasb-100-1/4-Pur-B from Festo offers advanced automation solutions with precise parameterization, ensuring seamless integration into your industrial setup.
- 2This component is designed with high-quality materials and robust construction, providing reliable performance in demanding environments.
- 3The detailed parameter descriptions available on our website allow you to customize the Vasb-100-1/4-Pur-B to meet specific application needs, enhancing efficiency and productivity.
- 4With Festo's commitment to quality and innovation, the Vasb-100-1/4-Pur-B is a trusted choice for industries seeking reliable and efficient automation solutions.
- 5Our comprehensive documentation ensures that you can easily understand and utilize the full potential of the Vasb-100-1/4-Pur-B, making it an ideal component for both beginners and experienced users.
- 6Go to [Festo's official website](https://www.festo.com/).
- 7Use the product search function to find the Vasb-100-1/4-Pur-B.
- 8Look for a section labeled "Documentation" or "Technical Data" where detailed specifications and parameter descriptions are usually found.
- 9The IODD file typically contains detailed descriptions of IO-Link parameters, which might be relevant for the Vasb-100-1/4-Pur-B.
- 10Check for parameterization options such as system parameters, module parameters, and diagnostic memory settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Suction cup height compensation | 15.5mm | Nominal width | 4mm |
Suction cup diameter | 100mm | Suction cup volume | 128cm3 |
Effective suction cup diameter | 90.5mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 450N |
Product weight | 155g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Die-cast zinc |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1396066 |
Specifications may be subject to change without notice
