Product Model

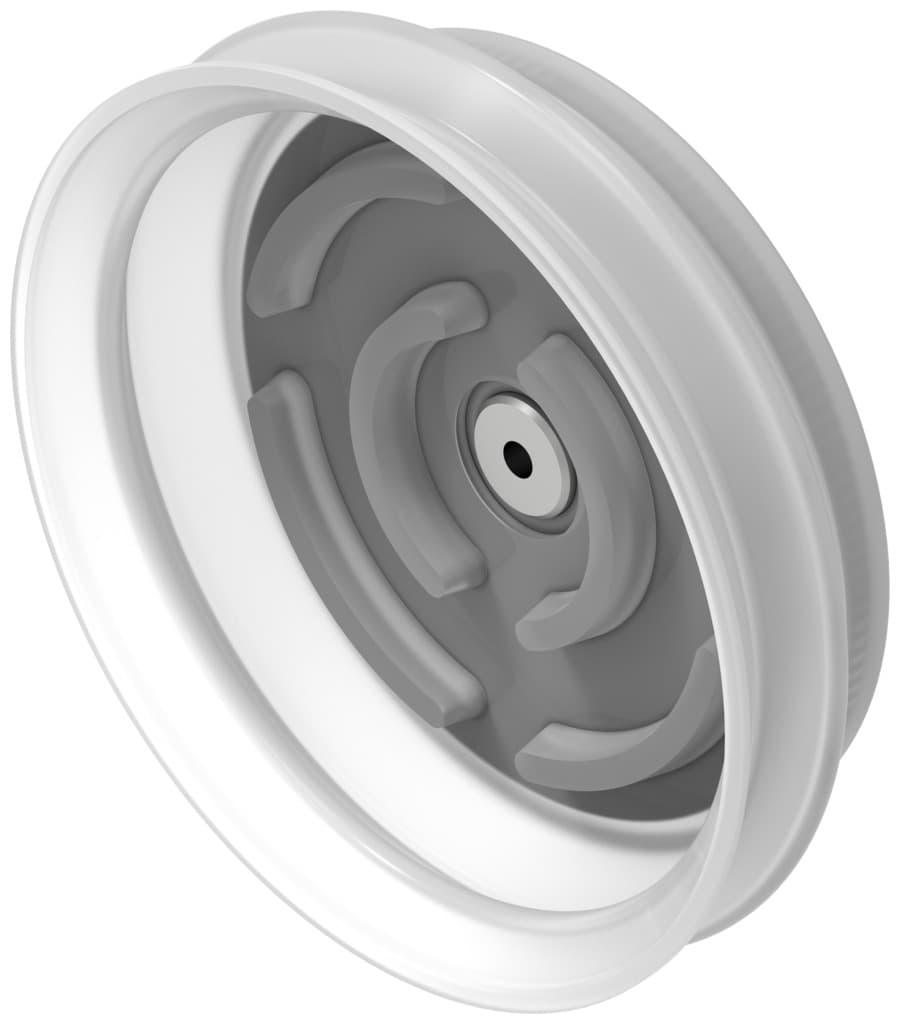

vasb-100-1/4-si-b

Selling Points
- 1The Festo VASB-100-1/4-SI-B is a high-quality automation component designed for precision and reliability in industrial applications. It offers advanced features and robust construction to ensure optimal performance.
- 2This component is part of Festo's extensive range of automation solutions, providing users with a wide array of options to meet specific needs in factory automation and process control.
- 3The VASB-100-1/4-SI-B is engineered to provide efficient and reliable operation, making it an ideal choice for applications requiring precise control and minimal downtime.
- 4Festo's commitment to quality is evident in the VASB-100-1/4-SI-B, which undergoes rigorous testing and certification to ensure it meets the highest industry standards.
- 5With its user-friendly design and compatibility with various Festo products, the VASB-100-1/4-SI-B simplifies integration into existing systems, enhancing overall efficiency and productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Suction cup height compensation | 15.5mm | Nominal width | 4mm |
Suction cup diameter | 100mm | Suction cup volume | 128cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 395N |
Product weight | 132g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Transparent |
Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 1382277 |
Specifications may be subject to change without notice
