Product Model

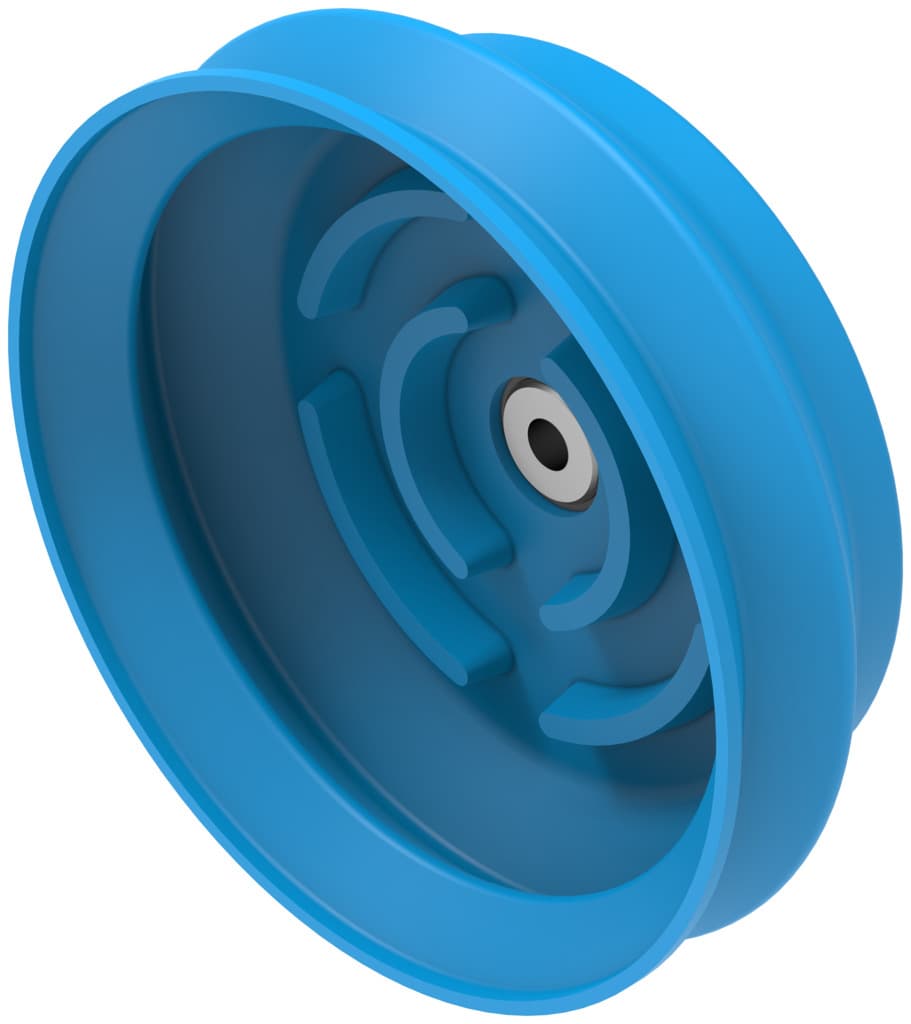

vasb-125-3/8-pur-b

Selling Points
- 1Efficient Automation Solution: The Vasb-125-3/8-Pur-B from Festo offers a reliable and efficient solution for various industrial automation applications, ensuring precise control and minimal downtime.
- 2Customizable Parameters: This component allows for customizable parameters, enabling users to tailor the system to their specific needs and optimize performance.
- 3High-Quality Construction: Built with high-quality materials, the Vasb-125-3/8-Pur-B ensures durability and longevity, reducing the need for frequent replacements.
- 4Easy Integration: Designed for easy integration with other Festo components, the Vasb-125-3/8-Pur-B simplifies the setup process, saving time and effort.
- 5Comprehensive Support: Festo provides comprehensive support and documentation, including detailed parameter descriptions, ensuring that users can effectively utilize the component.
- 6Visit the Festo Website: Go to the official Festo website.
- 7Product Search: Use the product search feature to locate the Vasb-125-3/8-Pur-B.
- 8Documentation Section: Once you find the product, navigate to the documentation or technical specifications section.
- 9Parameter Descriptions: Look for detailed parameter descriptions, which should include settings, options, and technical data specific to the model.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Suction cup height compensation | 25mm | Nominal width | 7mm |
Suction cup diameter | 125mm | Suction cup volume | 307cm3 |
Effective suction cup diameter | 101.8mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 570N |
Product weight | 294g | Type of mounting | Via vacuum connection |
Vacuum connection | G3/8 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Die-cast zinc |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1396067 |
Specifications may be subject to change without notice
