Product Model

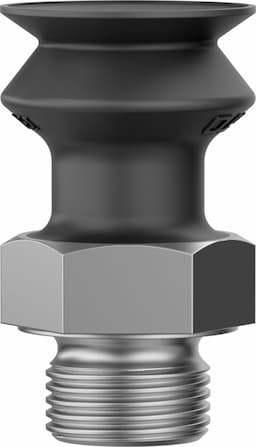

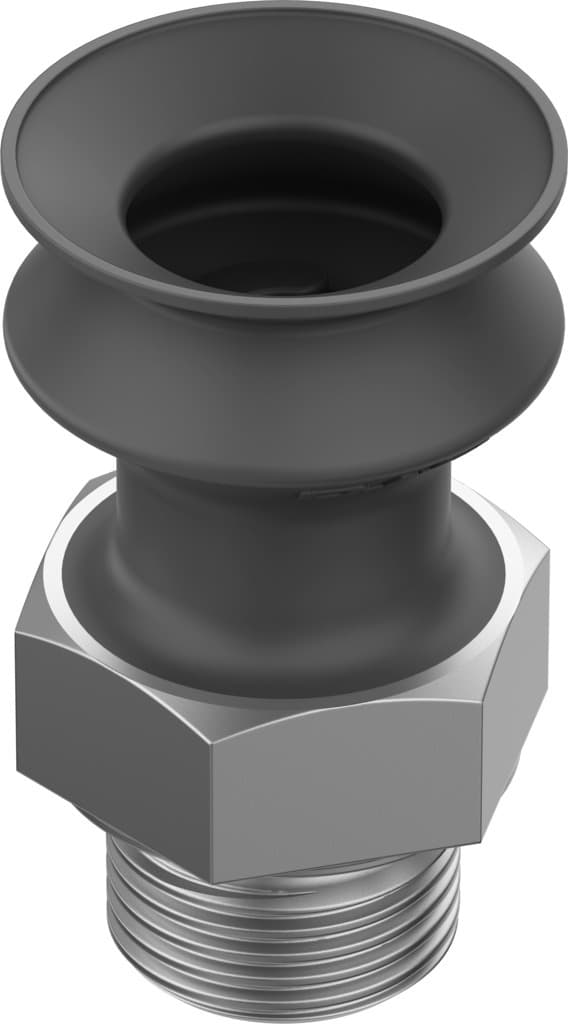

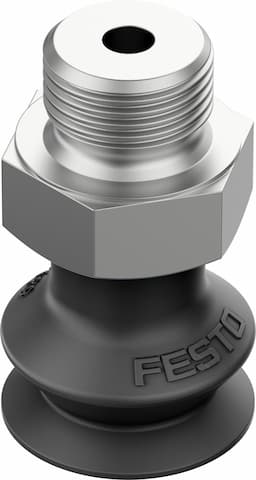

vasb-15-1/8-nbr

Selling Points
- 1The Festo Vasb-15-1/8-NBR is a high-quality, precision-engineered component designed for demanding automation applications. Its robust construction ensures reliable performance in various environments.
- 2This component features advanced materials and manufacturing techniques, providing exceptional durability and resistance to wear and tear. It is ideal for applications requiring consistent performance over time.
- 3The Vasb-15-1/8-NBR is part of Festo's extensive range of automation components, offering a one-stop solution for all your industrial automation needs. It can be easily integrated into complex systems for seamless operation.
- 4With its precise dimensions and standardized interfaces, the Vasb-15-1/8-NBR simplifies the procurement process and reduces warehousing costs. It is available worldwide with fast shipping options.
- 5Festo's commitment to quality is evident in the Vasb-15-1/8-NBR, which meets stringent industry standards for performance and reliability. This ensures that your automation systems operate efficiently and effectively.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Nominal width | 3mm | Suction cup diameter | 15mm |
Effective suction cup diameter | 12mm | Connection position | Top |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 7.9N |
Holding force at nominal operating pressure | 7.9N | Mounting thread | G1/8 |
Suction cup mounting | G 1/8 | Vacuum connection | G1/8 |
Color | Black | Shore hardness | 60 +/- 5 |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 35411 |
Specifications may be subject to change without notice
