Product Model

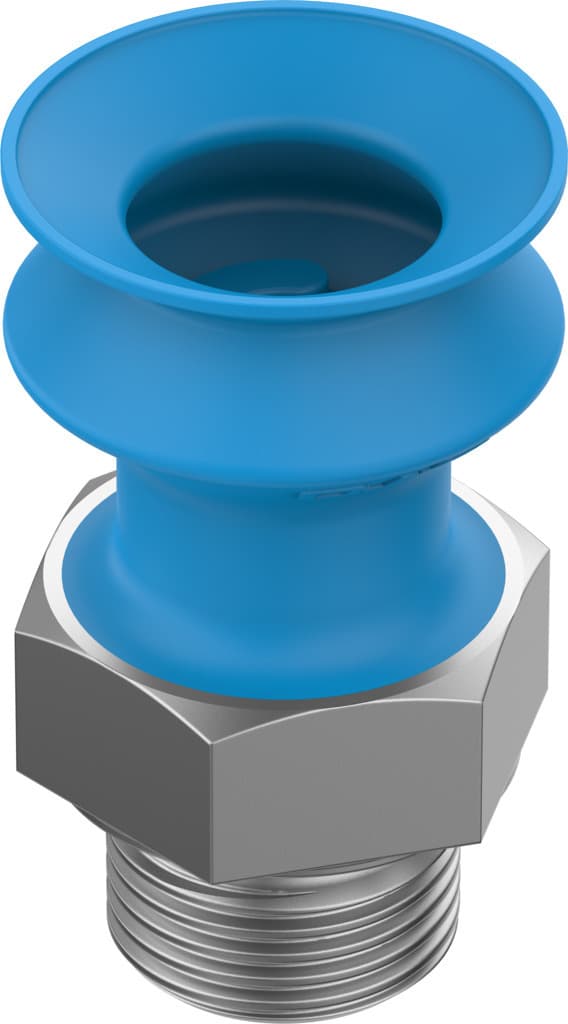

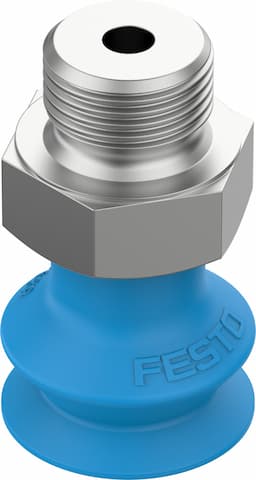

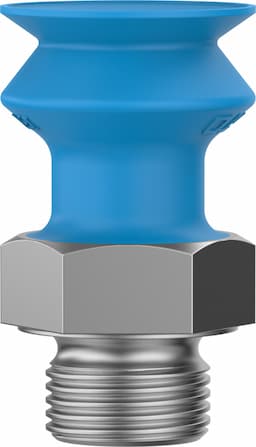

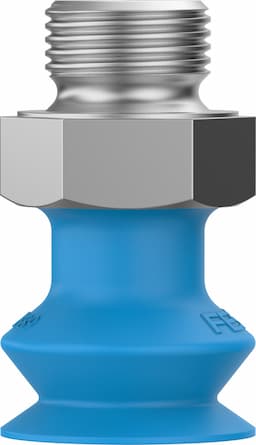

vasb-15-1/8-pur-b

Selling Points
- 1Pneumatic Cylinders: Festo offers a wide variety of pneumatic cylinder drives, including piston rod cylinders, rodless cylinders, swivel cylinders, and more. These cylinders are designed with standardized dimensions and mounting interfaces for easy integration into your system.
- 2Electric Actuators: Festo's electric actuators are innovative and effective solutions for industrial motion control. They include electric axes, cylinders, slides, and rotary actuators, ensuring precise and efficient operation in various applications.
- 3Servo Drives & Motors: Festo's servo motors and drives offer high efficiency and straightforward operation. With the Festo Automation Suite, they can be rapidly commissioned as a full drive system, making them ideal for bridging mechanics and control technologies.
- 4Pneumatic Valves & Valve Manifolds: Festo's pneumatic valves are versatile and can be used universally or configured individually. The product portfolio includes directional control valves, shut-off valves, flow regulators, and pressure regulators, ensuring precise control in various applications.
- 5Grippers & Handling Technology: Festo offers both pneumatic and electric grippers with long strokes, suitable for a wide range of handling applications. The grippers come in various designs, including parallel, radial, and angled gripper configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Suction cup height compensation | 5.6mm | Nominal width | 3mm |
Suction cup diameter | 15mm | Suction cup volume | 0.83cm3 |
Effective suction cup diameter | 12.4mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 8.5N |
Product weight | 11g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/8 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1395671 |
Specifications may be subject to change without notice
