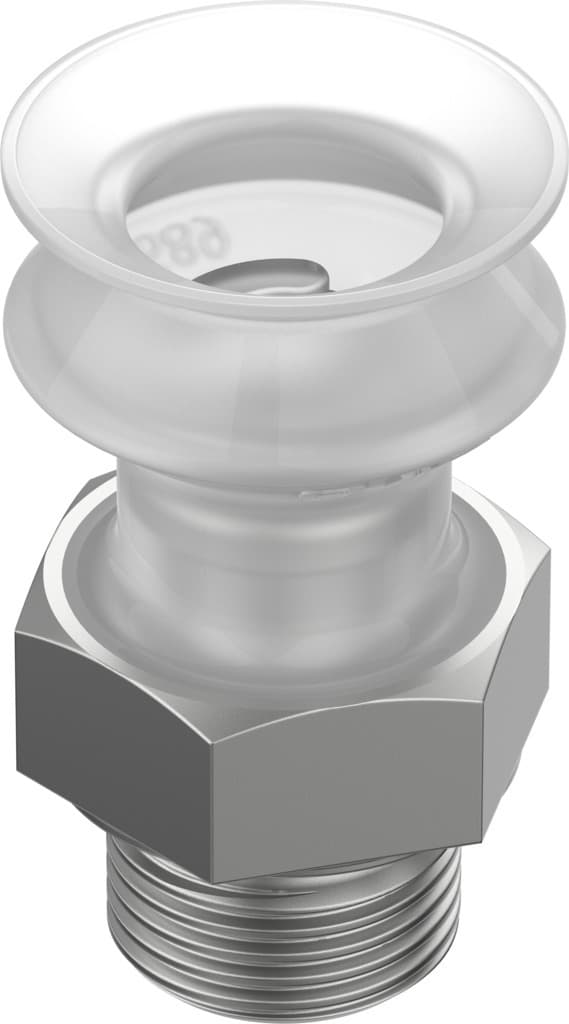

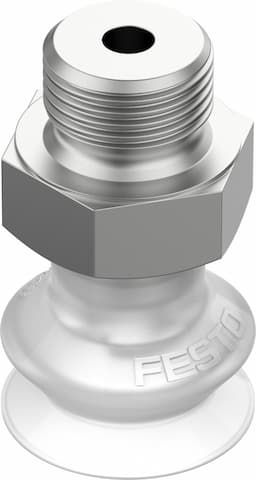

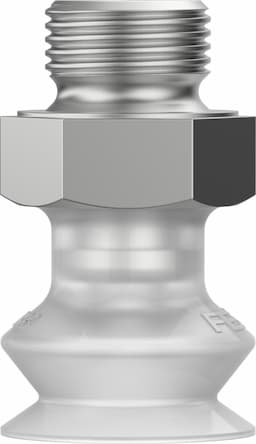

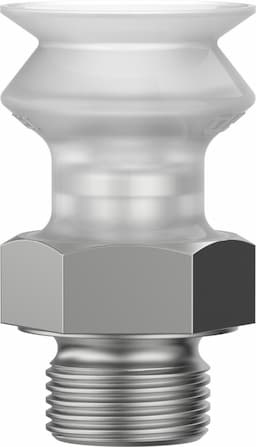

Product Model
vasb-15-1/8-si-b
Selling Points
- 1The Festo Vasb-15-1/8-Si-B offers precise parameterization with software from Festo or higher-order controllers, ensuring customizable automation system settings.
- 2This product features a robust design with dimensions of 125.8 × 37.8 × 76.5 mm and a product weight of 145 grams, making it suitable for various mounting positions.
- 3The Vasb-15-1/8-Si-B supports monitoring parameters such as SCS, SCO, and UOUT, along with fail-safe and force mode settings for reliable operation.
- 4It includes diagnostic memory parameterization and error number descriptions, ensuring easy troubleshooting and maintenance.
- 5The product adheres to high standards of quality and safety, with protection against electric shock and electromagnetic compatibility to EN 61000-6-2/-4 and NE 21.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 5.6mm | Nominal width | 3mm |
Suction cup diameter | 15mm | Suction cup volume | 0.83cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 8.5N |
Product weight | 4g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/8 | Color | Transparent |
Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 1377689 |
Specifications may be subject to change without notice
