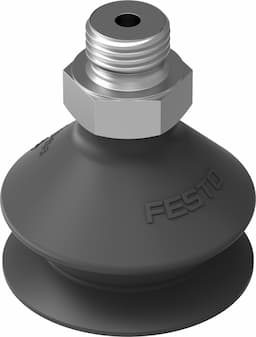

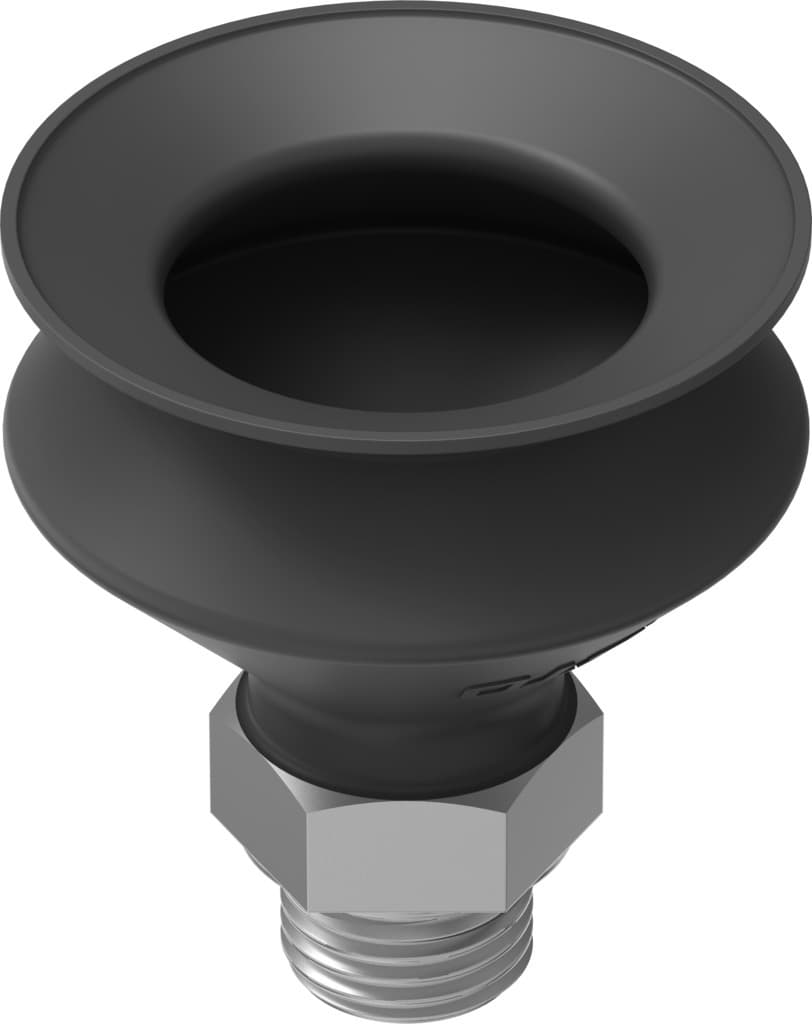

Product Model
vasb-30-1/8-nbr
Selling Points
- 1The Festo VASB-30-1/8-NBR pneumatic valve is designed for high-performance applications, ensuring efficient and reliable operation in industrial automation systems.
- 2This valve features a robust construction with durable materials, including NBR seals, to withstand the demands of continuous use in various industrial environments.
- 3The VASB-30-1/8-NBR valve offers precise control and flow regulation, making it ideal for applications requiring precise pressure management and flow rates.
- 4With its compact design and standardized interfaces, the Festo VASB-30-1/8-NBR valve is easy to integrate into existing automation systems, reducing installation time and complexity.
- 5Festo's commitment to quality ensures that the VASB-30-1/8-NBR valve meets stringent industry standards, providing long-lasting performance and minimizing maintenance needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 3mm | Suction cup diameter | 30mm |
Effective suction cup diameter | 25mm | Connection position | Top |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 34N |
Holding force at nominal operating pressure | 34N | Mounting thread | G1/8 |
Suction cup mounting | G 1/8 | Vacuum connection | G1/8 |
Color | Black | Shore hardness | 60 +/- 5 |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 35412 |
Specifications may be subject to change without notice
