Product Model

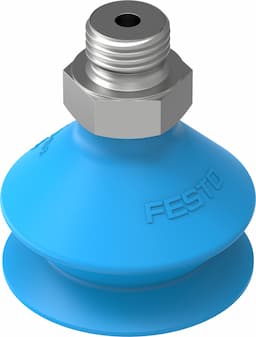

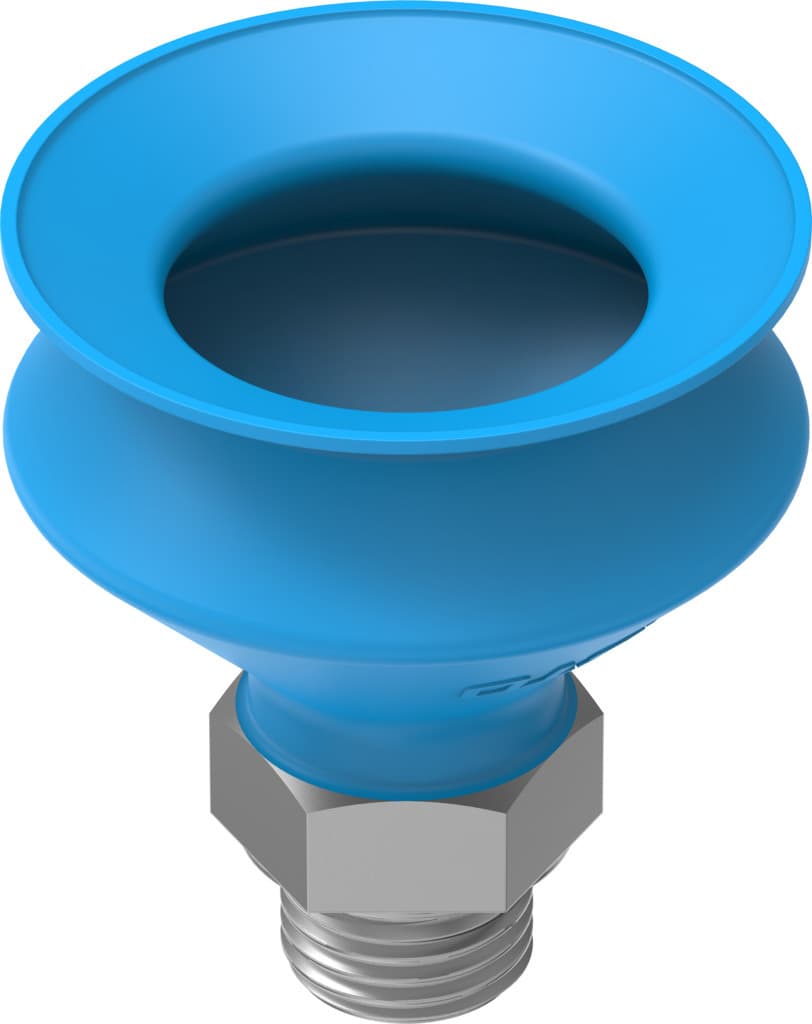

vasb-30-1/8-pur-b

Selling Points
- 1The Festo Vasb-30-1/8-Pur-B offers advanced IO-Link parameters, ensuring seamless integration with various automation systems. Its detailed descriptions provide a clear understanding of each parameter, facilitating precise control and optimization.
- 2With its robust design, the Vasb-30-1/8-Pur-B supports multiple parameter sets, including standard IO-Link parameters, smart sensor profile parameters, and device-specific parameters. This versatility makes it an ideal choice for complex automation applications.
- 3The product features block parameterization, allowing users to set up and manage parameters in a structured manner. This enhances the efficiency of parameterization processes, reducing setup time and minimizing errors.
- 4The Vasb-30-1/8-Pur-B includes diagnostic capabilities, enabling real-time monitoring and troubleshooting. Its comprehensive diagnostic features help in identifying and resolving issues quickly, ensuring continuous system operation.
- 5Designed for ease of use, the Festo Vasb-30-1/8-Pur-B supports parameterization through user-friendly software or higher-order controllers. This flexibility ensures that users can easily configure and manage the device according to their specific needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Suction cup height compensation | 13.9mm | Nominal width | 3mm |
Suction cup diameter | 30mm | Suction cup volume | 6.18cm3 |
Effective suction cup diameter | 24.8mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 34N |
Product weight | 14g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/8 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1395690 |
Specifications may be subject to change without notice
