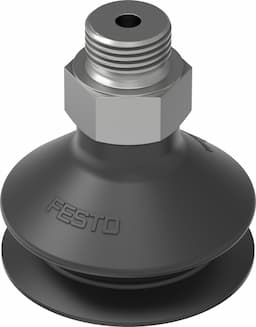

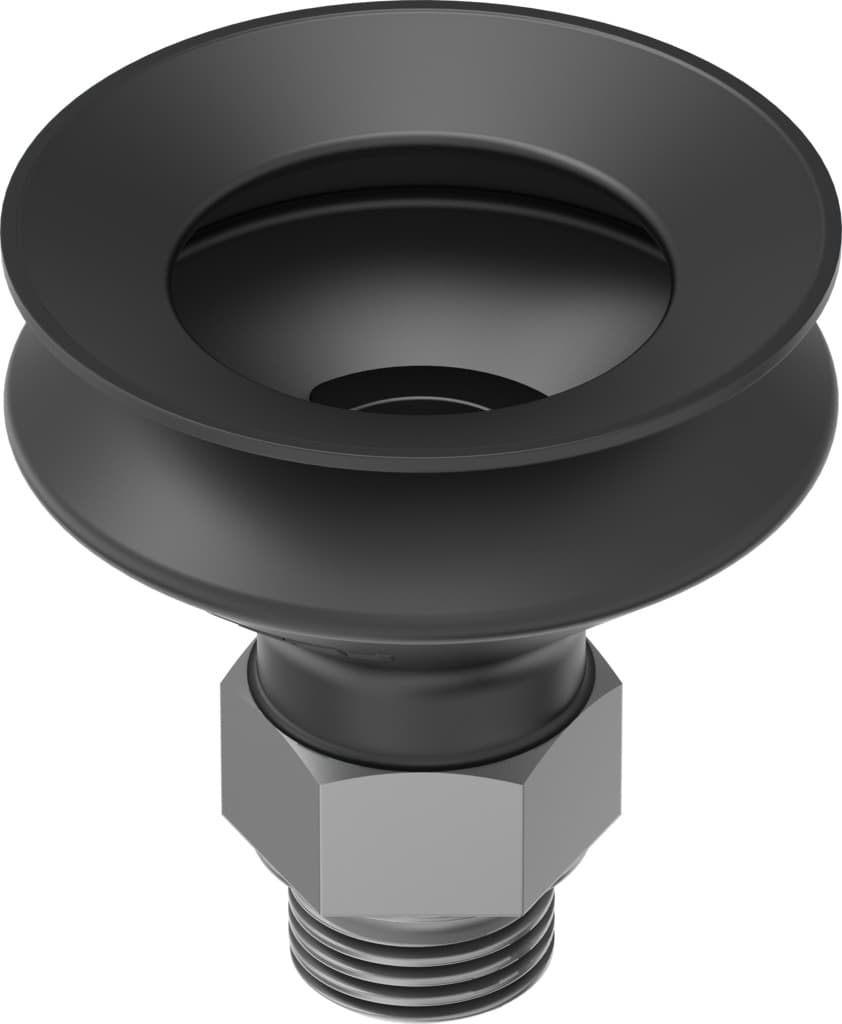

Product Model
vasb-40-1/4-nbr

Selling Points
- 1High-Quality Automation Components - Festo offers a wide range of high-quality automation components, including pneumatic and electric grippers, valves, and actuators, designed to enhance efficiency in factory automation and process control.
- 2Versatile Gripping Technology - Festo's grippers and gripping technology provide global solutions for various handling applications, offering both pneumatic and electric grippers with long strokes and customizable jaw designs.
- 3Efficient Air Preparation Systems - Festo’s air preparation combination units ensure the correct compressed air quality by filtering out oil, condensate, and dirt particles, making them essential for maintaining optimal system performance.
- 4Standardized IO-Link Technology - Festo utilizes standardized IO-Link technology (IEC 61131-9) for simple and economical communication with sensors and actuators, reducing complexity and material requirements.
- 5Comprehensive Product Range - Festo offers a complete product range from single components to integrated solutions, including pneumatic valves, electric cylinders, and control components, making it a one-stop shop for industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Nominal width | 4mm | Suction cup diameter | 40mm |
Effective suction cup diameter | 32mm | Connection position | Top |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 56N |
Holding force at nominal operating pressure | 56N | Mounting thread | G? |
Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
Color | Black | Shore hardness | 60 +/- 5 |
Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 35413 |
Specifications may be subject to change without notice
