Product Model

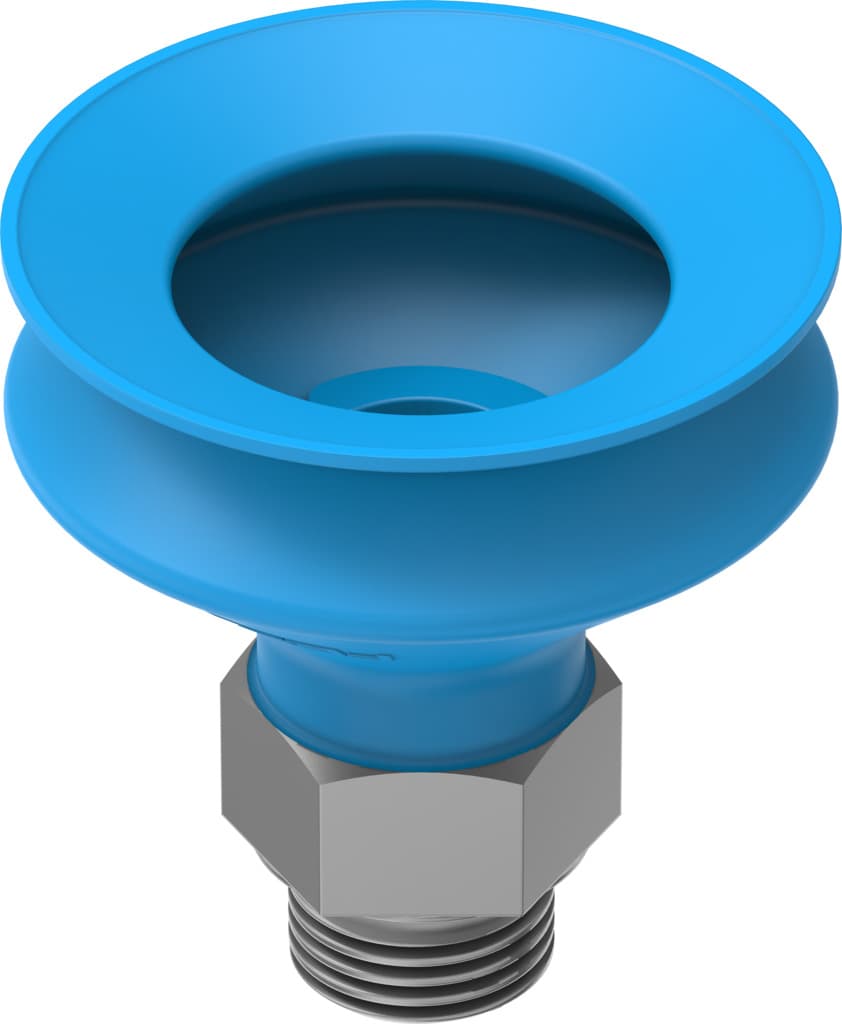

vasb-40-1/4-pur-b
Selling Points
- 1The Festo Vasb-40-1/4-Pur-B is designed for seamless integration into industrial automation systems, ensuring smooth and efficient operations.
- 2Built with robust components, this product guarantees high reliability and durability, minimizing downtime and maintenance needs.
- 3The Vasb-40-1/4-Pur-B offers customizable parameters, allowing users to tailor the system to their specific application requirements.
- 4With its user-friendly design and straightforward installation process, the Vasb-40-1/4-Pur-B simplifies the setup of complex automation systems.
- 5Festo provides comprehensive support and documentation, ensuring that users have all the necessary information to optimize their system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 13.7mm | Nominal width | 4mm |
Suction cup diameter | 40mm | Suction cup volume | 11.11cm3 |
Effective suction cup diameter | 34.4mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 60N |
Product weight | 30g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Die-cast zinc |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1395691 |
Specifications may be subject to change without notice
