Product Model

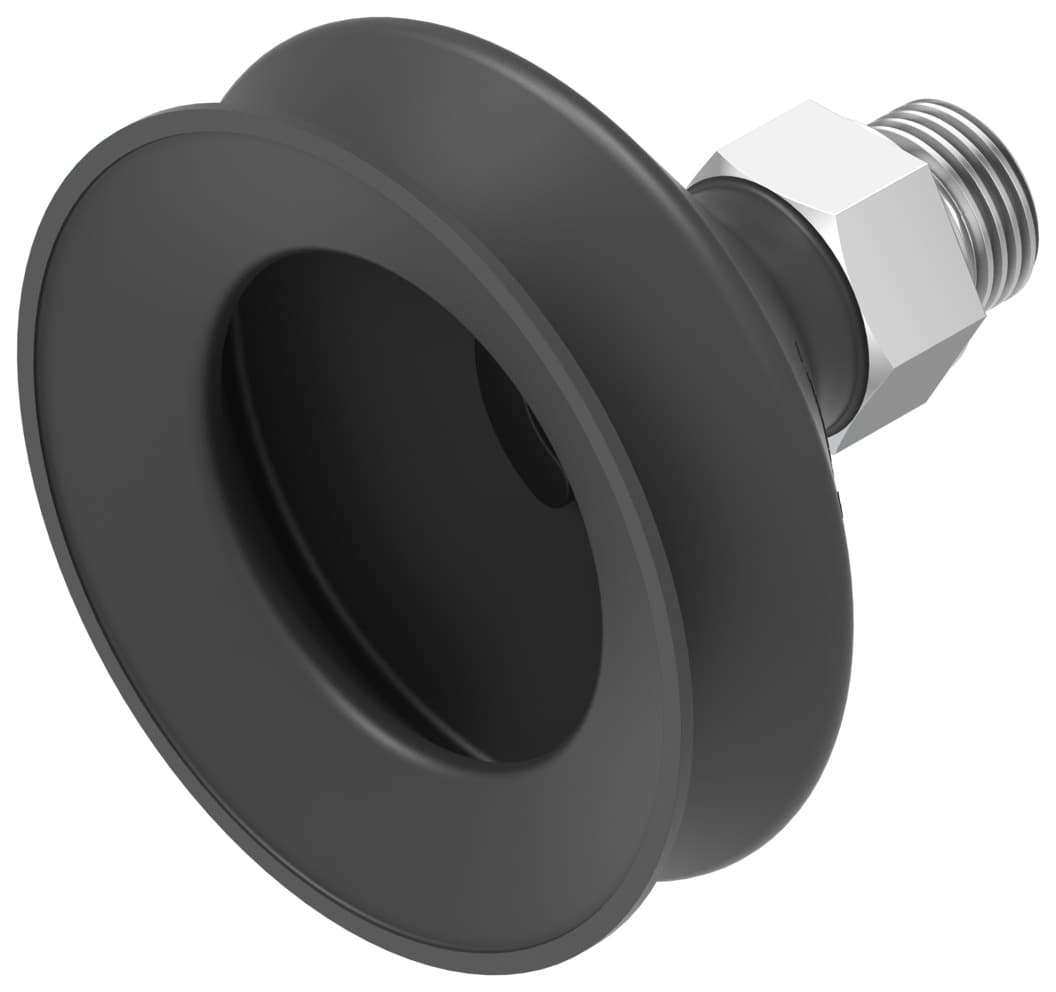

vasb-55-1/4-nbr

Selling Points
- 1The Festo Vasb-55-1/4-NBR is a high-quality pneumatic component designed for precise and reliable performance in various industrial applications. Its robust construction ensures long-lasting operation under demanding conditions.
- 2This component features a durable NBR (Nitrile Butadiene Rubber) seal, providing excellent resistance to oil, grease, and other chemicals, making it ideal for use in harsh environments.
- 3The Vasb-55-1/4-NBR is part of Festo's extensive range of pneumatic components, offering a wide selection of products that can be easily integrated into complex automation systems.
- 4With its compact design and standardized dimensions, the Vasb-55-1/4-NBR is easy to install and maintain, reducing downtime and increasing overall system efficiency.
- 5Festo's commitment to quality is evident in the Vasb-55-1/4-NBR, which meets stringent industry standards and is backed by comprehensive customer support and service.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Nominal width | 4mm | Suction cup diameter | 55mm |
Effective suction cup diameter | 44mm | Connection position | Top |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 106N |
Holding force at nominal operating pressure | 106N | Mounting thread | G? |
Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
Color | Black | Shore hardness | 60 +/- 5 |
Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 35414 |
Specifications may be subject to change without notice
