Product Model

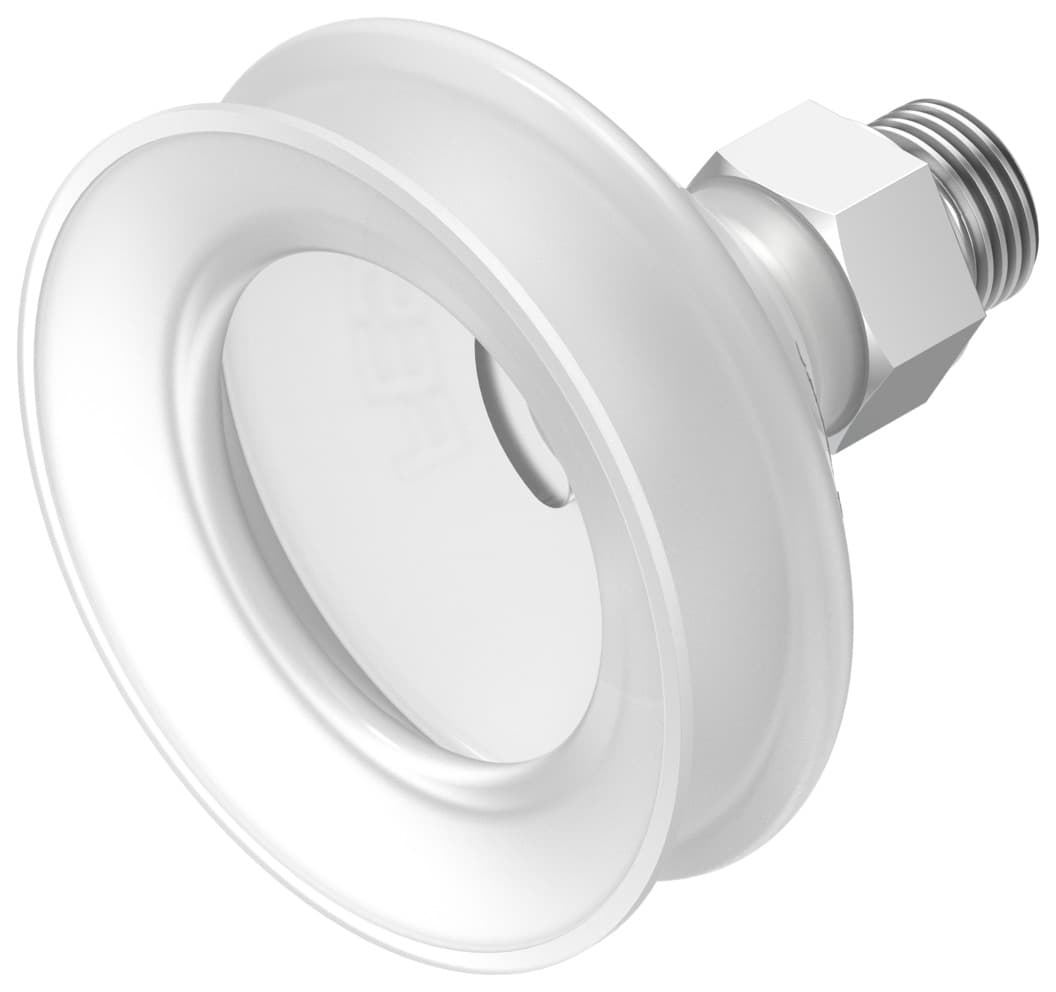

vasb-55-1/4-si-b
Selling Points
- 1The VASB-55-1/4-SI-B vacuum suction cup features a height compensator for precise positioning, ensuring consistent performance in various applications.
- 2With a nominal size of 4 mm and a suction cup diameter of 55 mm, this suction cup offers a robust design for handling heavy loads.
- 3The VASB-55-1/4-SI-B operates within a wide temperature range of -40 °C to 200 °C, making it suitable for diverse industrial environments.
- 4This suction cup is designed for use with atmospheric air and meets ISO 8573-1:2010 standards, ensuring high-quality performance and reliability.
- 5The VASB-55-1/4-SI-B is made from VMQ (silicone) material, which provides excellent corrosion resistance and durability, making it ideal for applications requiring long-term use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 20mm | Nominal width | 4mm |
Suction cup diameter | 55mm | Suction cup volume | 30.4cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 110N |
Product weight | 29g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Transparent |
Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 1373812 |
Specifications may be subject to change without notice
