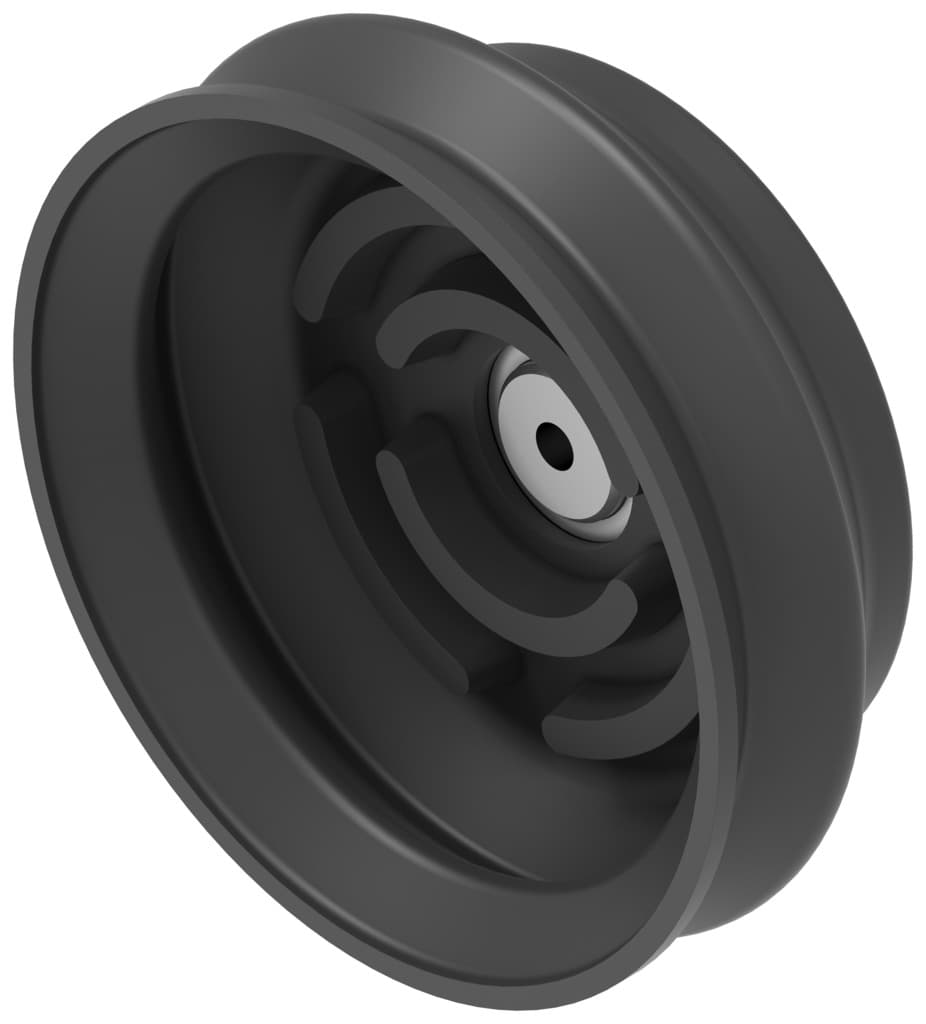

Product Model
vasb-75-1/4-nbr

Selling Points
- 1High-Quality Components - Festo offers a wide variety of high-quality pneumatic and electric components, including valves, cylinders, and actuators, designed to enhance the efficiency and reliability of your industrial processes.
- 2Innovative Gripping Technology - Festo's grippers and gripping technology provide global solutions for various handling applications, featuring both pneumatic and electric grippers with long strokes and customizable jaw designs.
- 3Efficient Air Preparation - Festo's air preparation combination units ensure the correct compressed air quality by filtering out oil, condensate, and dirt particles, making them ideal for demanding applications.
- 4Integrated IO-Link Technology - Festo's standardized IO-Link technology simplifies communication with sensors and actuators, reducing complexity and material requirements while ensuring efficient point-to-point connections.
- 5Holistic Quality Management - Festo's globally established quality management system ensures that every product meets the highest standards of quality, from consultation to shipment, guaranteeing customer satisfaction and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Nominal width | 4mm | Suction cup diameter | 75mm |
Effective suction cup diameter | 60mm | Connection position | Top |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 197N |
Holding force at nominal operating pressure | 197N | Mounting thread | G? |
Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
Color | Black | Shore hardness | 60 +/- 5 |
Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 35415 |
Specifications may be subject to change without notice
