Product Model

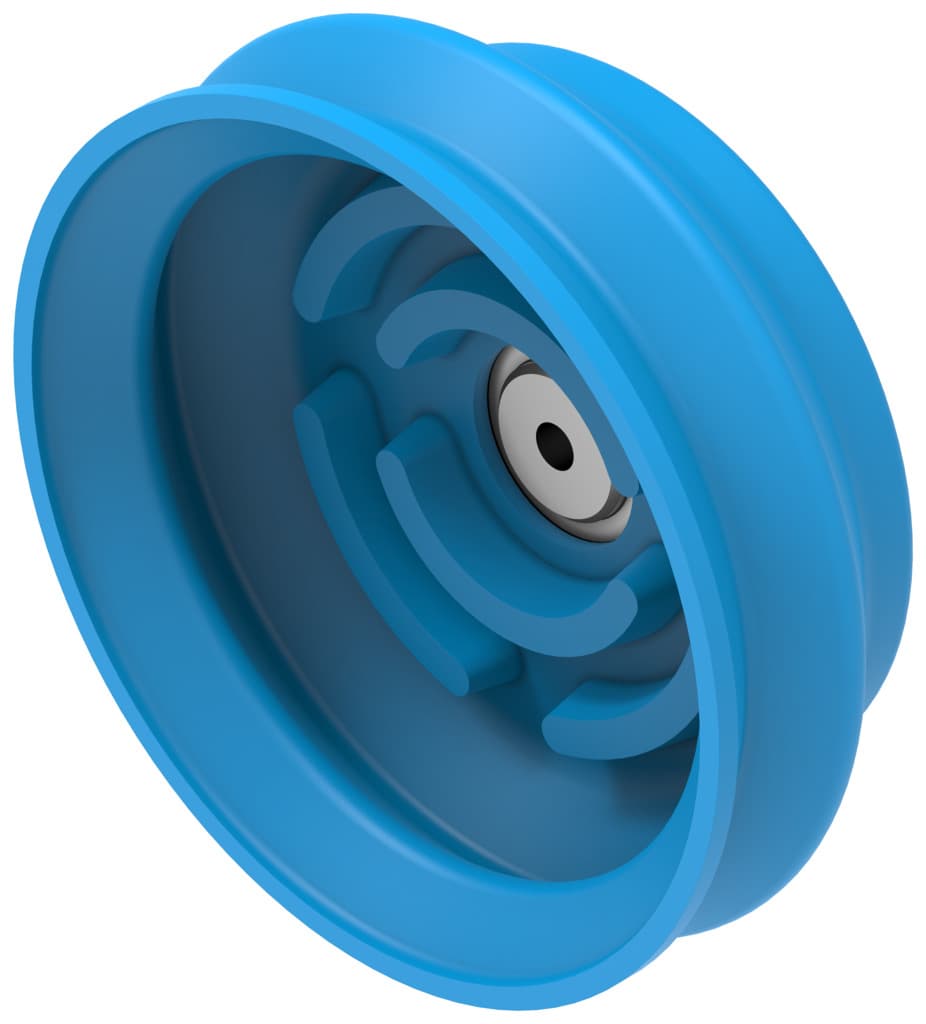

vasb-75-1/4-pur-b

Selling Points
- 1The Festo Vasb-75-1/4-Pur-B is designed for high-precision automation, offering reliable performance in various industrial applications.
- 2This component features advanced IO-Link technology, enabling seamless communication with sensors and actuators for efficient automation.
- 3The Vasb-75-1/4-Pur-B is part of Festo's extensive range of pneumatic and electric components, ensuring compatibility with a wide range of systems.
- 4With its robust design and high-quality materials, this component ensures durability and long service life in demanding industrial environments.
- 5The detailed parameterization options available for the Vasb-75-1/4-Pur-B allow for customized settings to meet specific application requirements, enhancing overall system efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Suction cup height compensation | 15.5mm | Nominal width | 4mm |
Suction cup diameter | 75mm | Suction cup volume | 65.5cm3 |
Effective suction cup diameter | 67.4mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 250N |
Product weight | 90g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Die-cast zinc |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1396064 |
Specifications may be subject to change without notice
