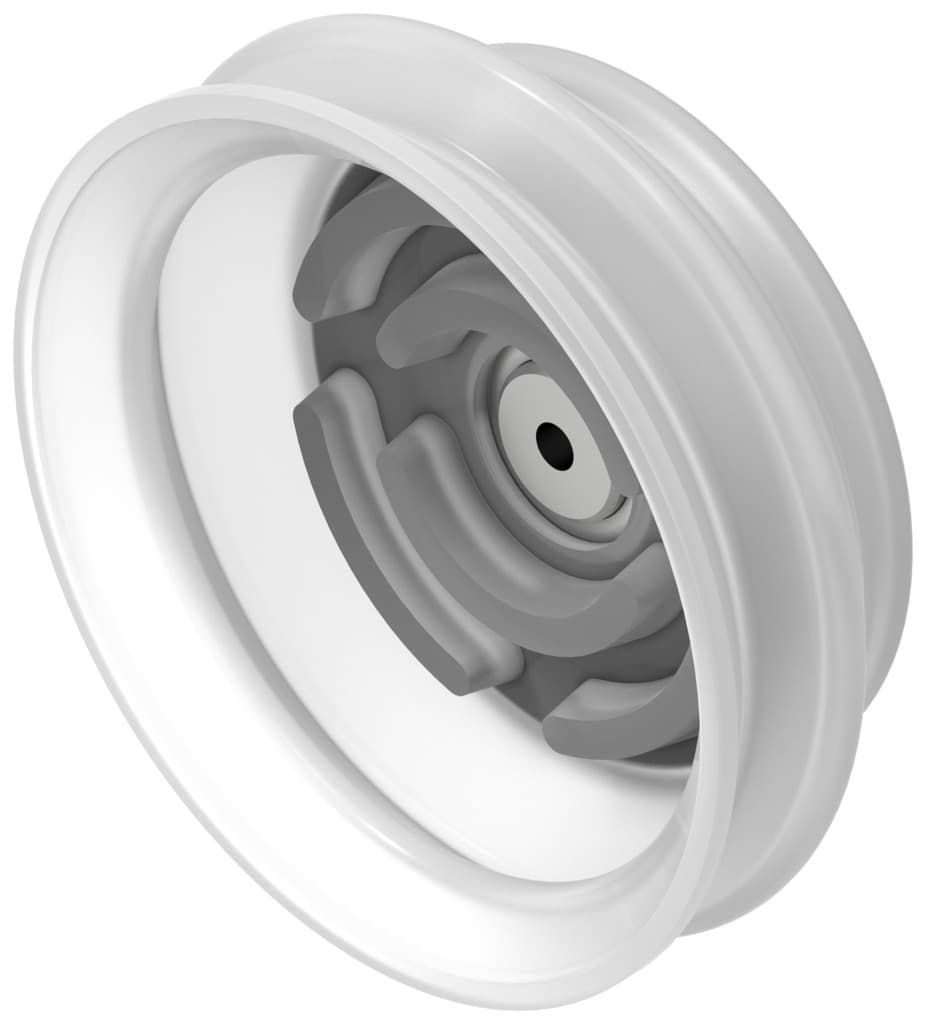

Product Model
vasb-75-1/4-si-b
Selling Points
- 1The VASB-75-1/4-SI-B is designed for precise control in industrial automation, ensuring high accuracy and reliability in various applications.
- 2This product features advanced technology that simplifies the integration process, making it easy to use and maintain in complex systems.
- 3The VASB-75-1/4-SI-B is part of Festo's extensive range of automation components, offering a one-stop solution for all your industrial needs.
- 4With its robust design and durable materials, this product ensures long-lasting performance and minimal downtime, reducing maintenance costs.
- 5The VASB-75-1/4-SI-B supports a wide range of applications, including machine tools, factory automation, and process control, making it versatile and adaptable.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 15.5mm | Nominal width | 4mm |
Suction cup diameter | 75mm | Suction cup volume | 65.5cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 228N |
Product weight | 78g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Transparent |
Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 1378427 |
Specifications may be subject to change without notice
