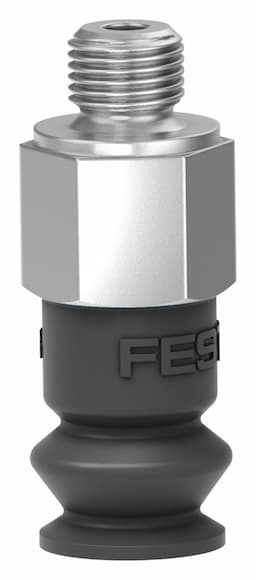

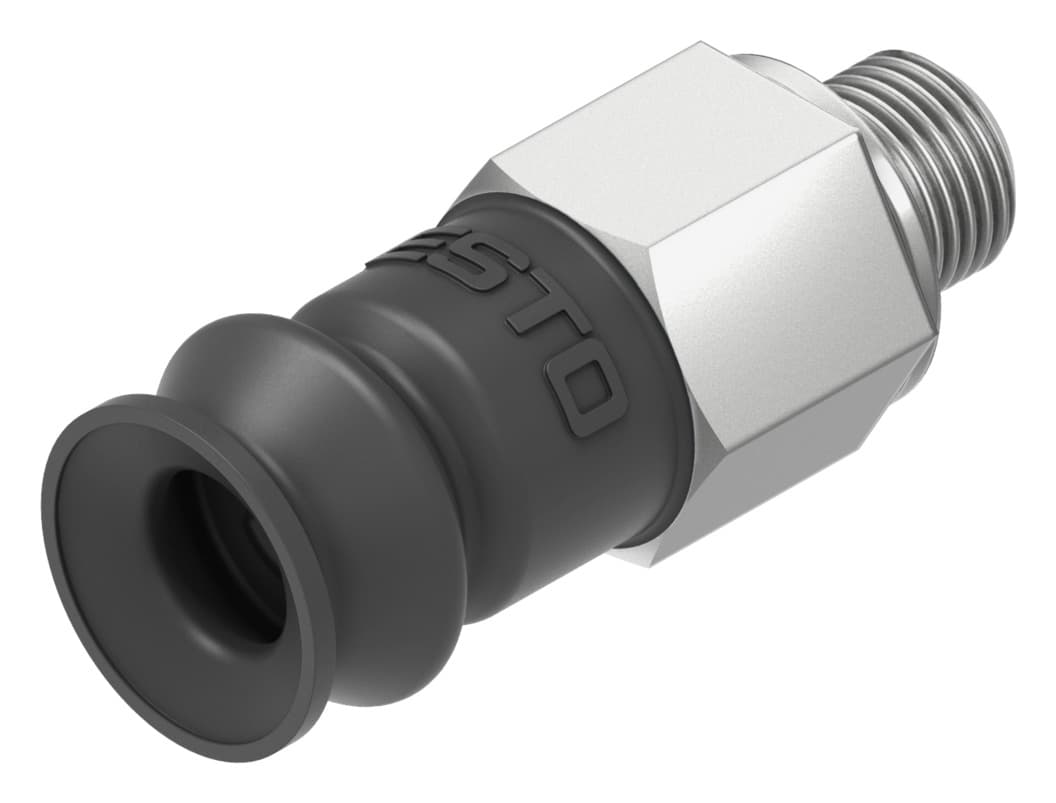

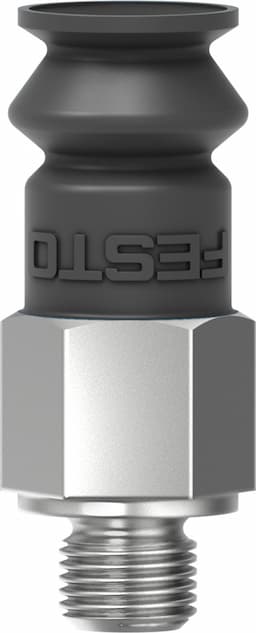

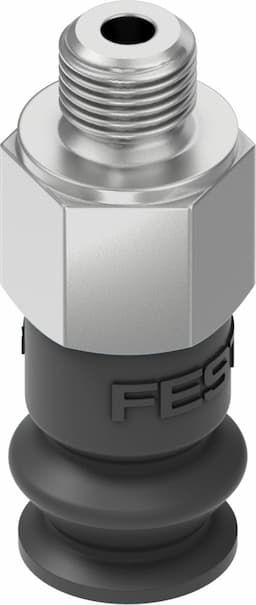

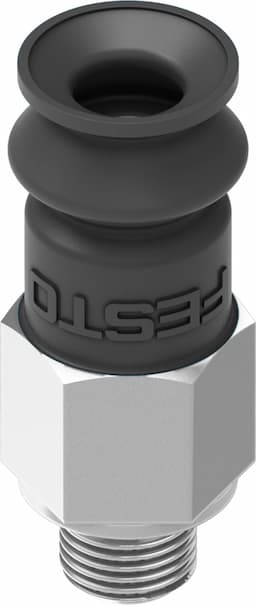

Product Model
vasb-8-m5-nbr
Selling Points
- 1The VASB-8-M5-NBR suction cup features a nominal size of 2 mm and a suction cup diameter of 8 mm, ensuring precise and effective vacuum operations.
- 2With an effective suction diameter of 5.5 mm, this suction cup provides strong holding forces, making it ideal for various handling applications.
- 3The suction cup is designed with a round bellows shape, featuring 1.5 convolutions, which enhances its flexibility and durability.
- 4Operating within a temperature range of -20 °C to 80 °C, the VASB-8-M5-NBR suction cup is versatile for use in different environments.
- 5The breakaway force at 70% vacuum is 1.6 N, and the holding force at nominal operating pressure is also 1.6 N, ensuring reliable performance in various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2mm | Suction cup diameter | 8mm |
Effective suction cup diameter | 5.5mm | Connection position | Top |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 1.6N |
Holding force at nominal operating pressure | 1.6N | Mounting thread | M5 |
Suction cup mounting | M5 | Vacuum connection | M5 |
Color | Black | Shore hardness | 60 +/- 5 |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 35410 |
Specifications may be subject to change without notice
