Product Model

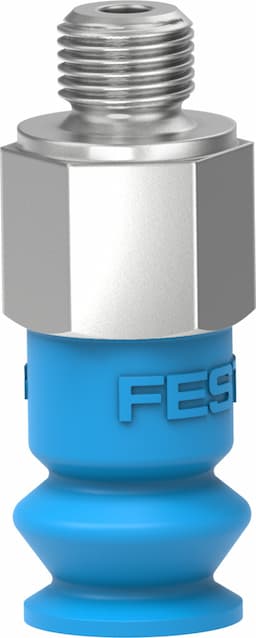

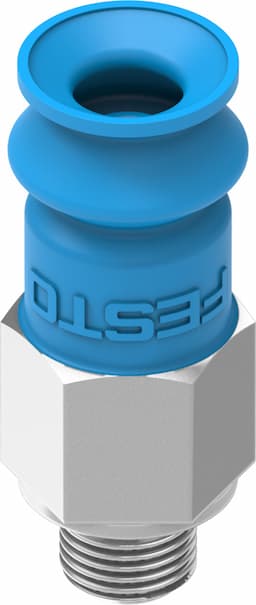

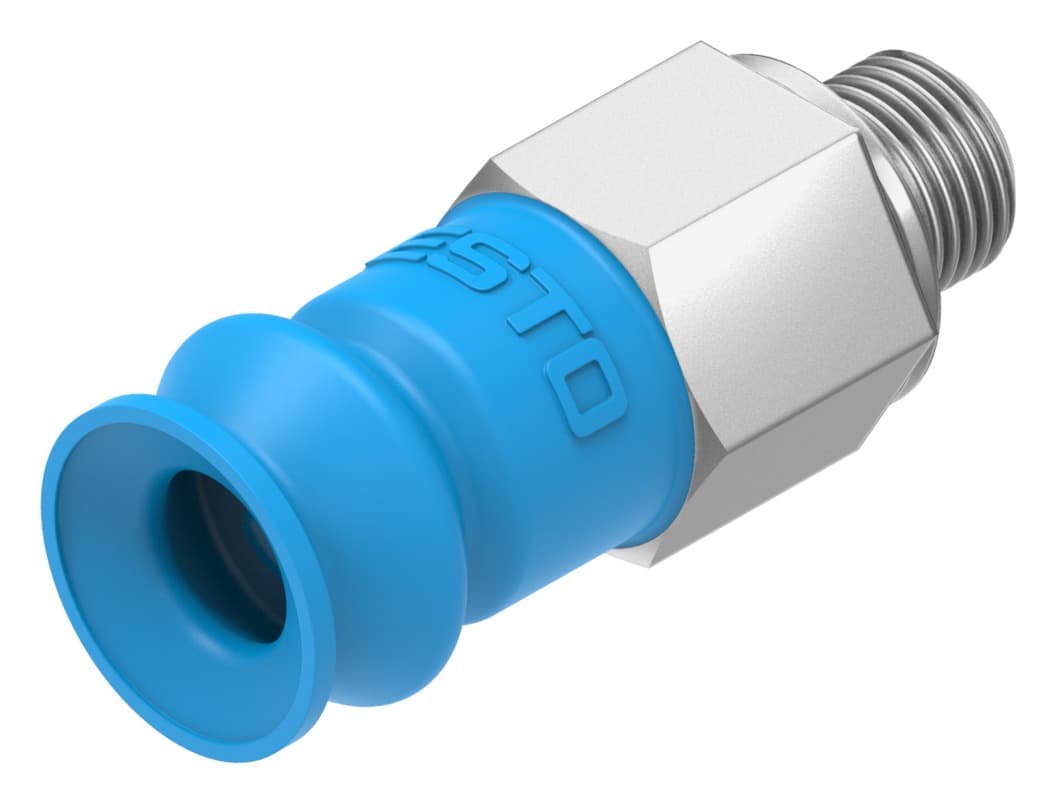

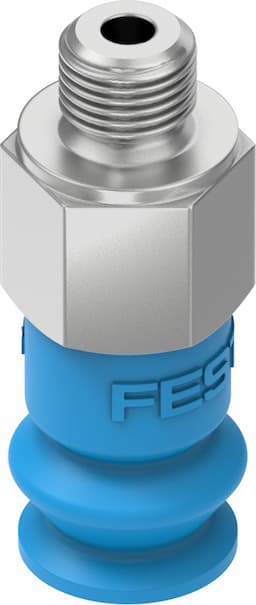

vasb-8-m5-pur-b
Selling Points
- 1The VASB-8-M5-PUR-B suction cup features a 3.3 mm height compensator, ensuring precise positioning in various applications.
- 2With a nominal suction cup diameter of 2 mm and a volume of 0.163 cm³, this suction cup is ideal for handling small objects.
- 3The VASB-8-M5-PUR-B is designed with a round, bellows shape and 1.5 convolutions, providing excellent grip and stability.
- 4Operating within a pressure range of -0.95 to 0 bar, this suction cup is versatile and suitable for various industrial applications.
- 5Made from high-quality PUR material, the VASB-8-M5-PUR-B offers excellent corrosion resistance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 3.3mm | Nominal width | 2mm |
Suction cup diameter | 8mm | Suction cup volume | 0.163cm3 |
Effective suction cup diameter | 7.1mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 2.8N |
Product weight | 4g | Type of mounting | Via vacuum connection |
Vacuum connection | M5 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1395637 |
Specifications may be subject to change without notice
