Product Model
vavc-f12-scc-13-p
Selling Points

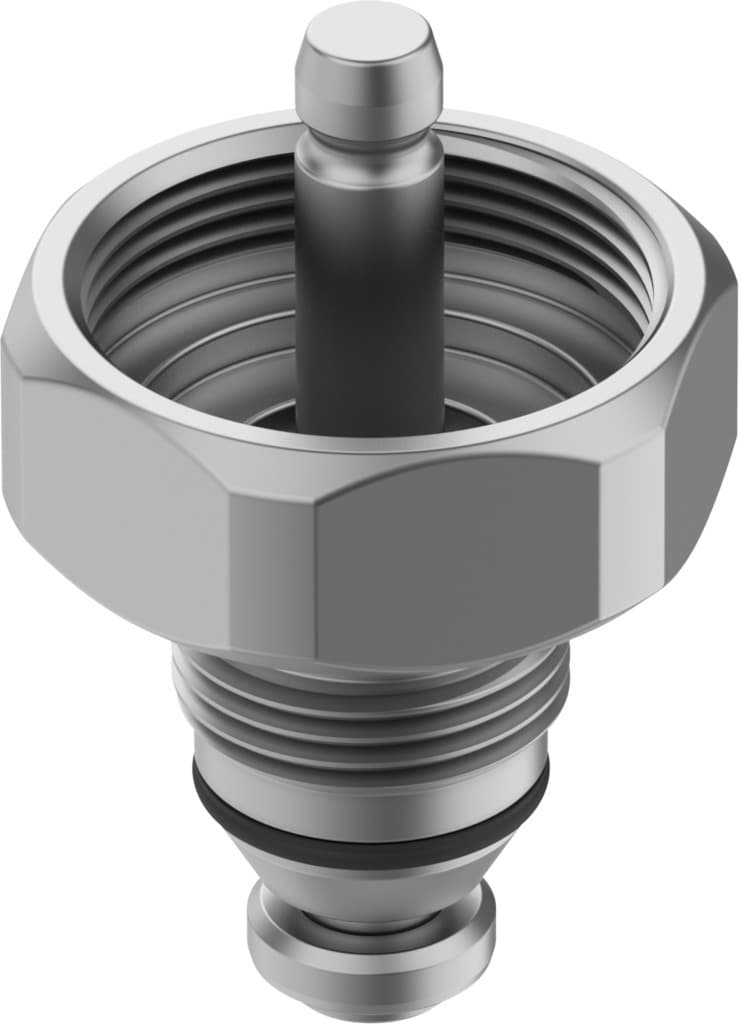

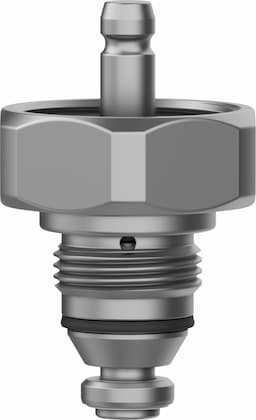

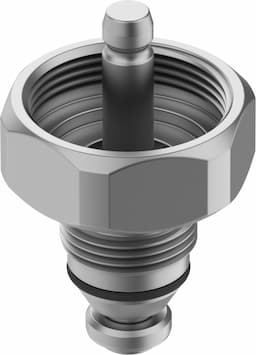

- 1The VAVC-F12-SCC-13-TP cover kit is designed for ATEX Zone 1, 2, and 21 protection, ensuring safe operation in hazardous environments.
- 2Compatible with vapour, mineral oil-based hydraulic fluid, inert gases, mineral oil, water, and filtered compressed air with a 200 µm filtration grade.
- 3Operates within a medium temperature range of -30 °C to 200 °C and an ambient temperature range of 0 °C to 60 °C.
- 4Constructed with high-alloy stainless steel for the cover and PTFE for the spindle and seat seals, ensuring durability and resistance to corrosion.
- 5Meets LABS (PWIS) conformity and VDMA24364 zone III standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width DN | 13 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | 100°C 230°C |
Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
Mounting position | Any | Product weight | 358g |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Spindle seal material | PTFE | Seat seal material | PEEK |
Manufacturer ID | 8201221 |
Specifications may be subject to change without notice
