Product Model

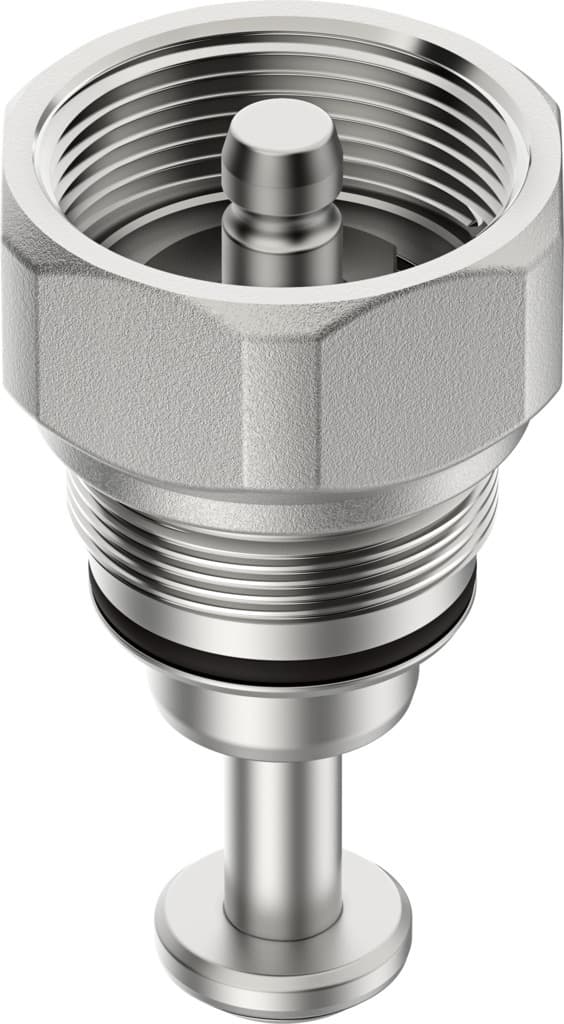

vavc-f12-scc-20-tp
Selling Points
- 1The VAVC-F12-SCC-20-TP offers precise control over fluid flow with its modified PTFE seat seal and PTFE spindle seal.
- 2Operates effectively between -30 °C and 200 °C, making it suitable for diverse industrial environments.
- 3Meets ATEX Zone 1, Zone 2, Zone 21, and Zone 22 standards for explosion prevention and protection.
- 4Built with high-alloy stainless steel cover material for durability and resistance to corrosion.
- 5Compatible with vapor, hydraulic fluid based on mineral oil, inert gas, mineral oil, water, and filtered compressed air.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width DN | 20 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | -30°C 200°C |
Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
Mounting position | Any | Product weight | 363g |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Spindle seal material | PTFE | Seat seal material | PTFE, modified |
Manufacturer ID | 8084036 |
Specifications may be subject to change without notice
