Product Model
vavc-f12-scc-25-p
Selling Points
- 1The Festo VAVC-F12-SCC-25-TP is designed for Zone 1, 2, and 21 ATEX applications, ensuring explosion protection in hazardous environments.

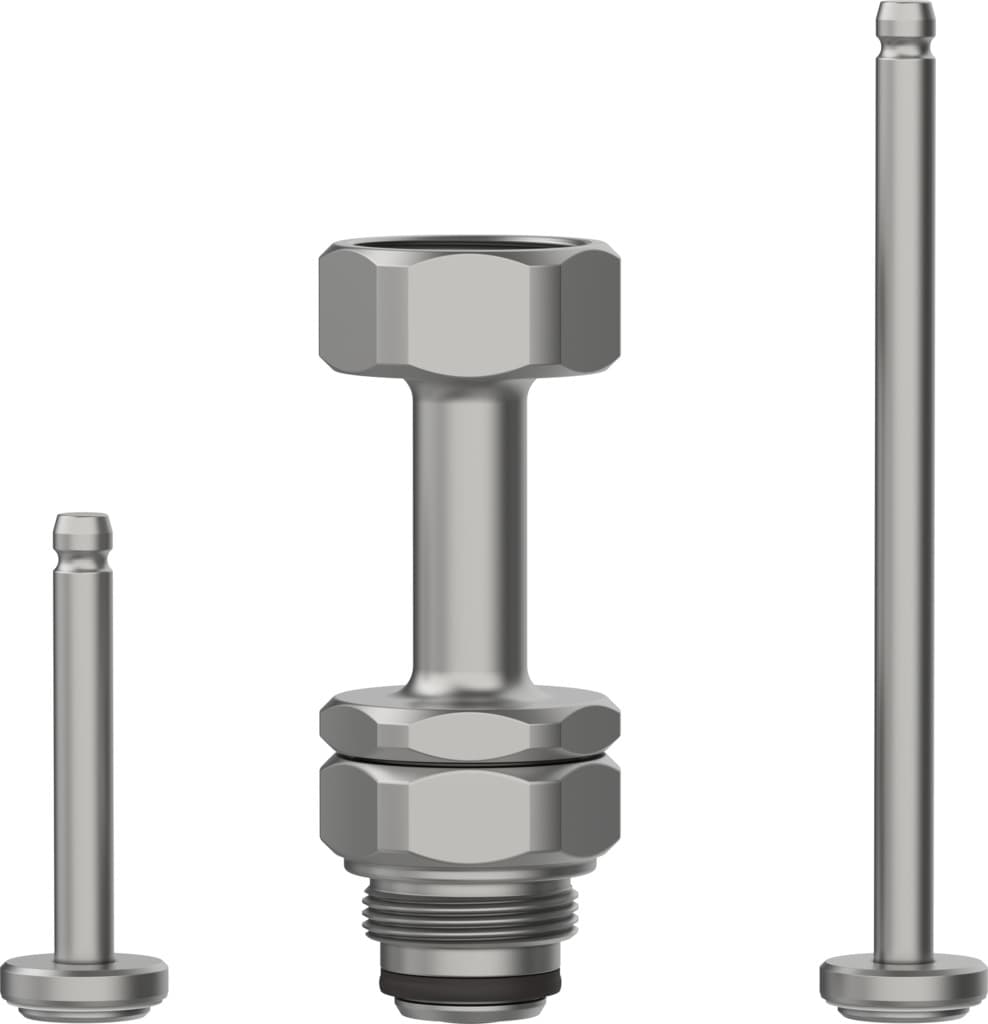

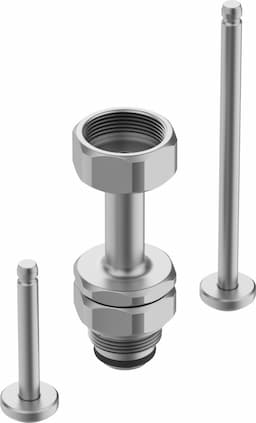

- 2This cover kit features a nominal diameter of 25 DN, making it suitable for various pneumatic valve configurations.
- 3The cover kit is made from high-alloy stainless steel, providing durability and resistance to corrosion.
- 4The spindle seal is made from PTFE, ensuring a reliable seal against hydraulic fluids, inert gases, mineral oil, water, and filtered compressed air.
- 5The product operates within a temperature range of -30 °C to 200 °C for the medium and -10 °C to 60 °C for storage, offering flexibility in different operational conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width DN | 25 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | 100°C 230°C |
Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
Mounting position | Any | Product weight | 921g |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Spindle seal material | PTFE | Seat seal material | PEEK |
Manufacturer ID | 8201223 |
Specifications may be subject to change without notice
