Product Model
vavc-f12-scc-32-p
Selling Points

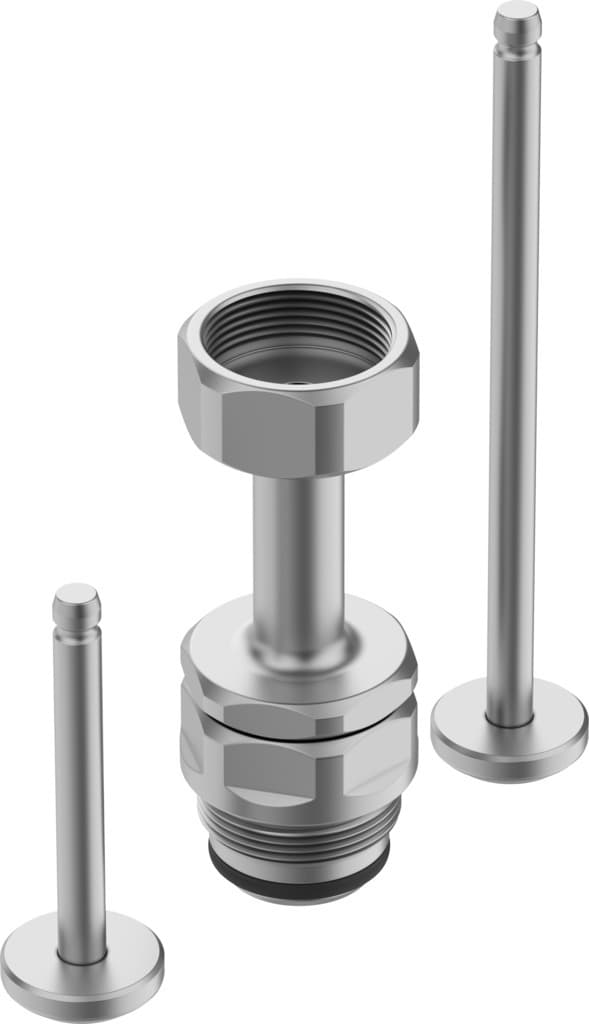

- 1The Festo VAVC-F12-SCC-32-TP Cover Kit is designed to fit a nominal size of 32 DN, ensuring compatibility with a wide range of pneumatic systems.
- 2This cover kit is engineered to operate in various media conditions, including vapour, mineral oil-based hydraulic fluid, inert gases, mineral oil, water, and filtered compressed air with a 200 µm filtration degree.
- 3The kit features high-alloy stainless steel for the cover and PTFE for the spindle and seat seals, ensuring durability and resistance to corrosion.
- 4The VAVC-F12-SCC-32-TP Cover Kit is compliant with RoHS regulations and can operate within a temperature range of -30°C to 200°C, making it suitable for diverse industrial applications.
- 5With an optional mounting position and a product weight of 424 grams, this cover kit offers flexibility and ease of installation in various settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width DN | 32 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | 100°C 230°C |
Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
Mounting position | Any | Product weight | 1080g |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Spindle seal material | PTFE | Seat seal material | PEEK |
Manufacturer ID | 8201224 |
Specifications may be subject to change without notice
