Product Model

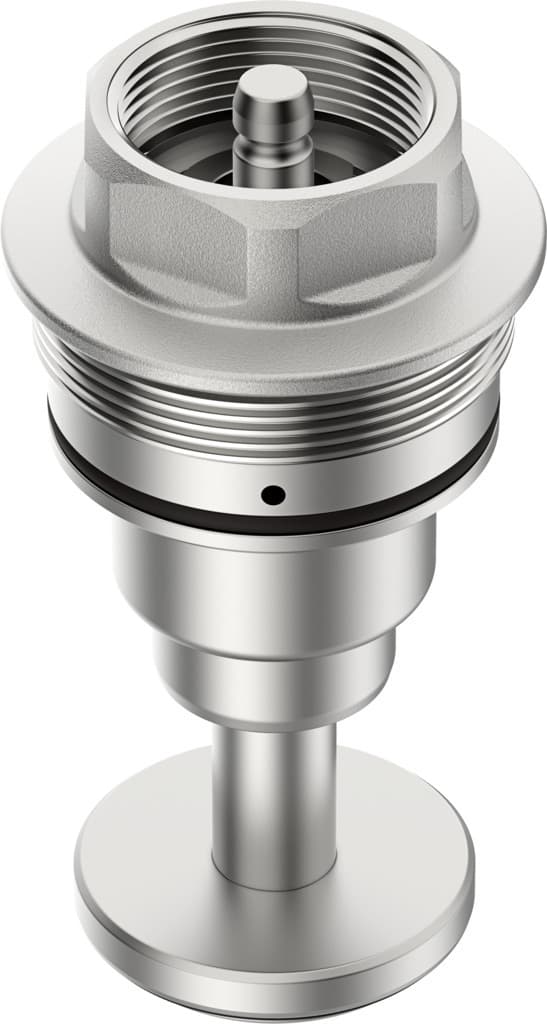

vavc-f12-scc-50-tp
Selling Points
- 1Built with high-alloy stainless steel for durability and resistance to corrosion.
- 2Suitable for handling vapor, hydraulic fluid, inert gases, mineral oil, water, and filtered compressed air.
- 3Operates from -30 °C to 200 °C, ensuring flexibility in different environmental conditions.
- 4Meets Zone 1 and Zone 2 ATEX standards for explosion prevention and protection.
- 5Simple mounting options with a cover kit and lubricating grease for smooth assembly and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width DN | 50 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | -30°C 200°C |
Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
Mounting position | Any | Product weight | 1180g |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Spindle seal material | PTFE | Seat seal material | PTFE, modified |
Manufacturer ID | 8084045 |
Specifications may be subject to change without notice
