Product Model
vavc-f12-scd-13-tp
Selling Points

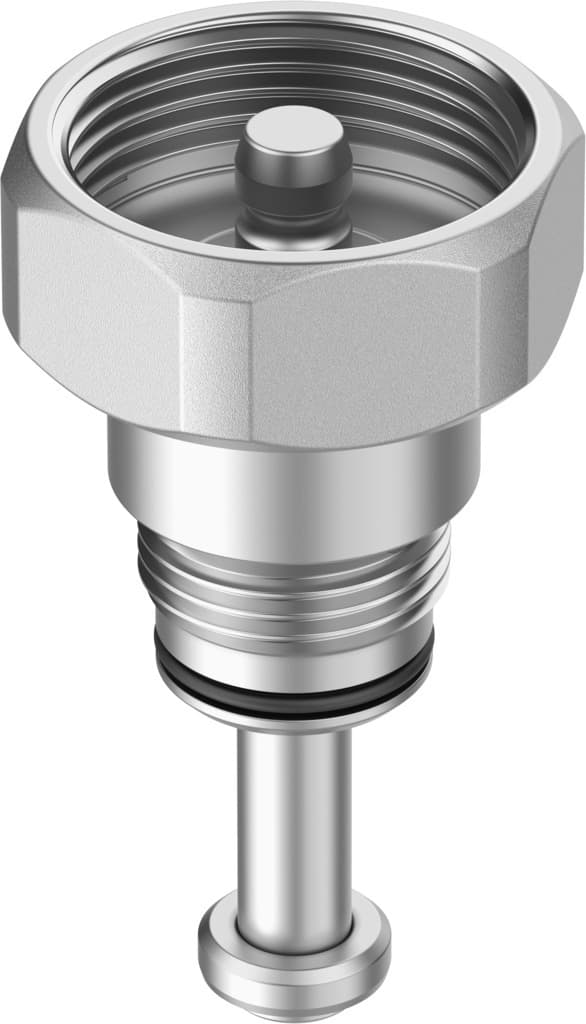

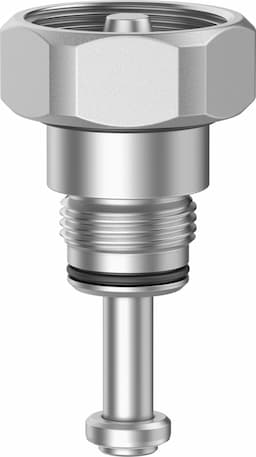

- 1The Festo VAVC-F12-SCD-13-TP cover kit is designed for explosion protection in ATEX zones 1, 2, 21, and 22, ensuring safe operation in hazardous environments.
- 2This cover kit is made from high-alloy stainless steel and features PTFE seals, ensuring durability and resistance to harsh conditions.
- 3The VAVC-F12-SCD-13-TP supports various media, including mineral oil-based hydraulic fluids, inert gases, mineral oil, water, and filtered compressed air, making it versatile for different applications.
- 4The product operates within a wide temperature range of -30 °C to 200 °C for media and -10 °C to 60 °C for ambient conditions, providing flexibility in various environments.
- 5With a weight of 358 grams and optional mounting positions, the VAVC-F12-SCD-13-TP is both lightweight and adaptable, making it easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width DN | 13 | Structural design | Spindle, cartridge and cover (integrated) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Product weight | 305g | Note on materials | RoHS-compliant |
Shut-off element material | PTFE, modified | Manufacturer ID | 8180299 |
Specifications may be subject to change without notice
