Product Model

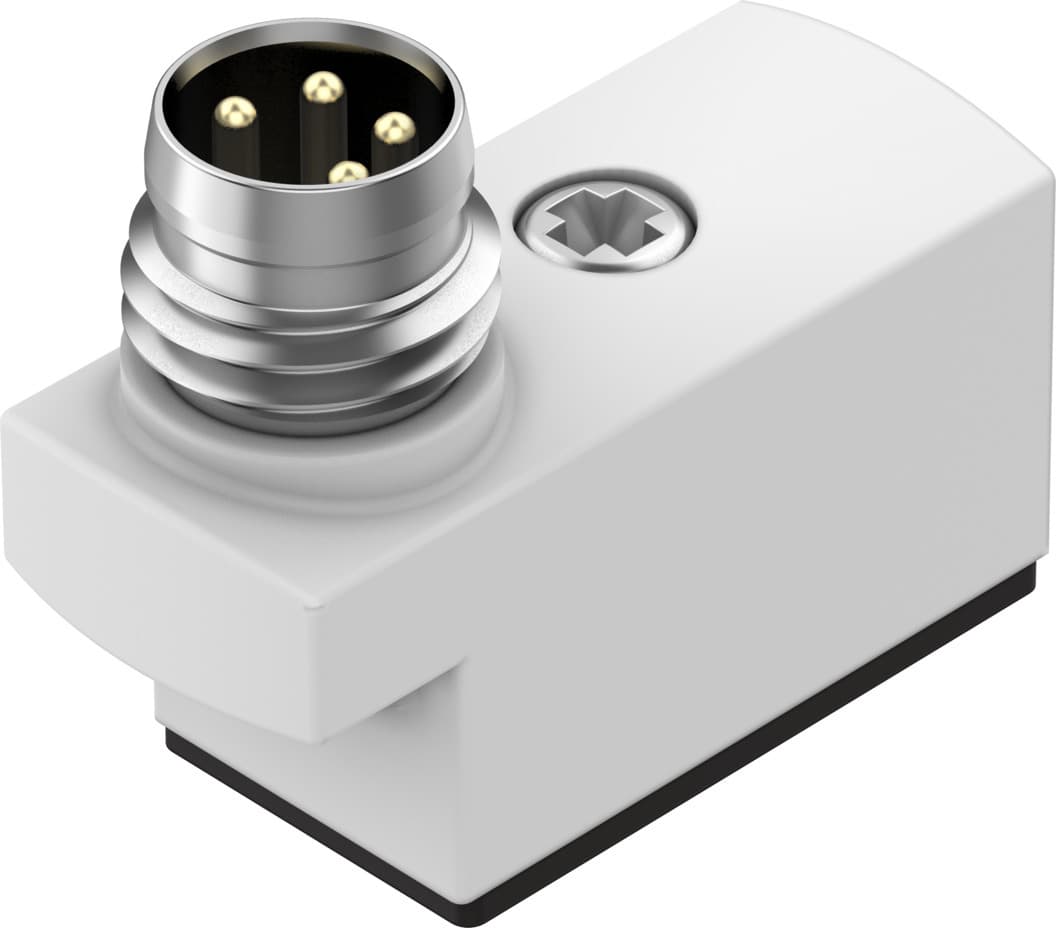

vave-c8-1r1
Selling Points
- 1Versatile assembly positions for any installation.
- 2LED signal status display for clear monitoring.
- 3Corrosion resistance classification CRC 2 - moderate corrosion stress.
- 4Protection class IP65 to IEC 60529 for robust protection.
- 5Compatible with 24V DC nominal operating voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal status display | LED | Nominal operating voltage DC | 24V |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 as per IEC 60529 | Ambient temperature | -5°C 60°C |
Mounting position | Any | Tightening torque | 0.25Nm |
Product weight | 3.5g | Electrical connection | 4-pin/2-pin M8 / - Plug/socket |
Protective earth connection | Not available | Type of mounting | On air solenoid valve with M2 central screw |
Note on materials | RoHS-compliant | Housing material | PA |
Material of pin contacts | Bronze | Manufacturer ID | 573194 |
Specifications may be subject to change without notice
