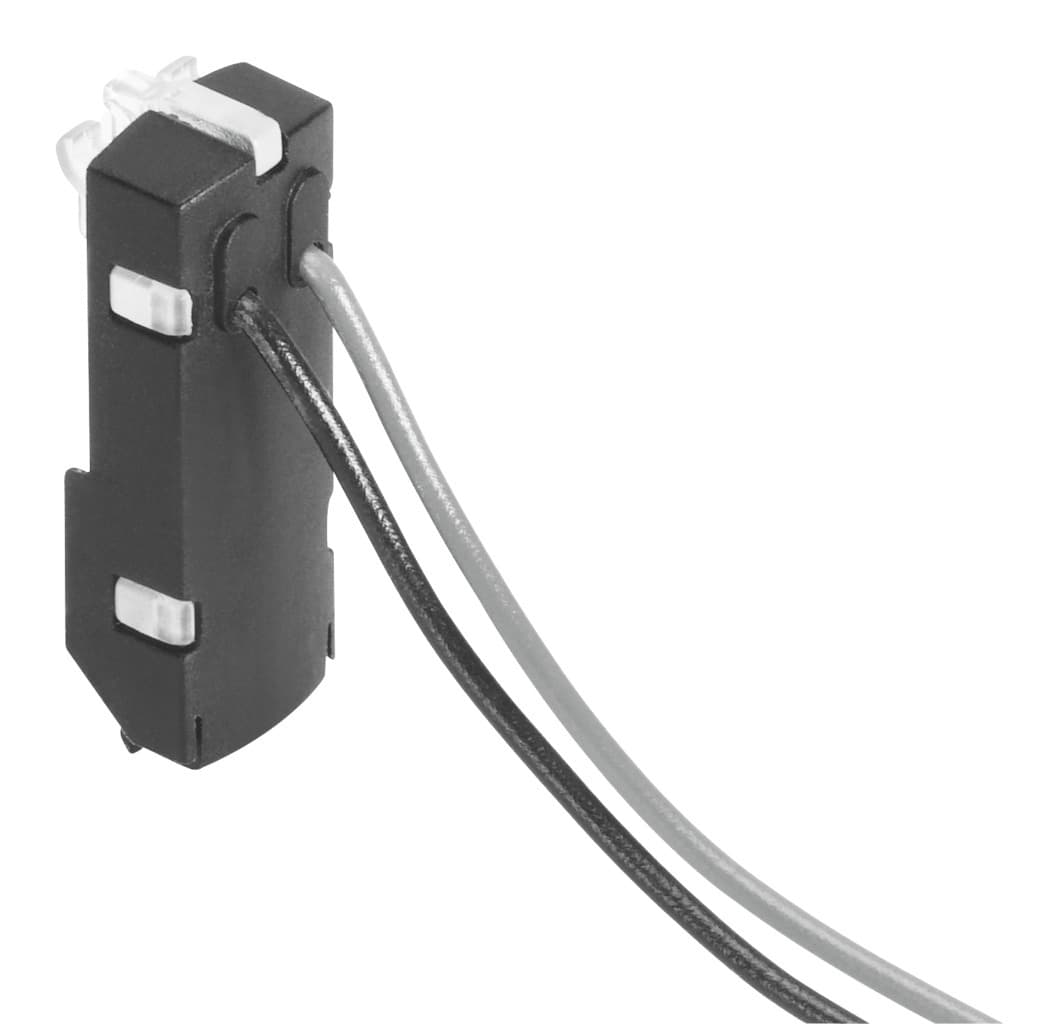

Product Model
vave-l1-1l2-lr
Selling Points
- 1Polarity Protection: Safeguards against voltage polarity reversal.
- 2Spark Arresting: Prevents electrical sparks during operation.
- 3Holding Current Reduction: Reduces power consumption to 0.35 W.
- 4LED Signal Status Display: Provides clear visual indication of signal status.
- 5Compact Design: Suitable for any assembly position with a weight of 7.8 g.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Reverse polarity protection | for operating voltage | Additional functions | Spark suppression Holding current reduction |
Signal status display | LED | Nominal operating voltage DC | 24V |
Surge resistance | 0.8kV | Contamination level | 3 |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
Ambient temperature | -5°C 60°C | Mounting position | Any |
Product weight | 7.8g | Connection cross section | 0.14mm2 |
Electrical connection | Flying lead | Cable length | 1m |
Wire ends | Cable end sleeve | Protective earth connection | Not available |
Type of mounting | Clip | Housing colour | Black |
Note on materials | RoHS-compliant | Housing material | PA |
Manufacturer ID | 566727 |
Specifications may be subject to change without notice
