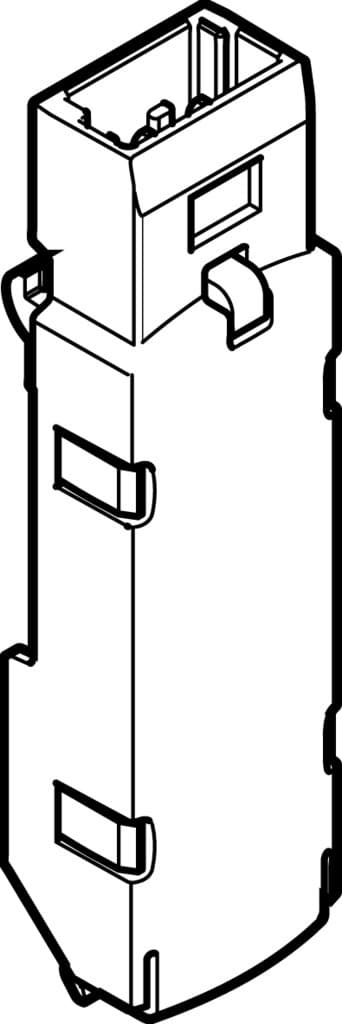

Product Model
vave-l1-1vs3-lp
Selling Points
- 1Safeguards against electrical shocks with built-in bipolar protection.
- 2Prevents electrical sparks, ensuring safe operation and reducing wear on components.
- 3Provides clear visual feedback on the device's status through an LED indicator.
- 4Compatible with 12V and 24V DC power sources, offering flexibility in system design.
- 5Withstands electrical surges up to 0.8 kV, ensuring reliable performance under varying conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Reverse polarity protection | Bipolar | Additional functions | Spark suppression |
Signal status display | LED | Nominal operating voltage DC | 12V |
Surge resistance | 0.8kV | Contamination level | 3 |
Extended ambient temperature | -5 - 60 °C | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
Ambient temperature | -5°C 50°C | Mounting position | Any |
Product weight | 1.6g | Electrical connection | 2-pin Socket |
Protective earth connection | Not available | Type of mounting | Clip |
Housing colour | Black | Note on materials | RoHS-compliant |
Housing material | PA | Manufacturer ID | 566719 |
Specifications may be subject to change without notice
