Product Model
vn-05-h-t3-pq2-vq2-ro1-a
Selling Points
- 1The Festo VN-05-H-T3-PQ2-VQ2-RO1-A vacuum generator delivers high vacuum levels, making it suitable for various industrial applications.
- 2This vacuum generator can be mounted in any position, offering flexibility in installation and integration.
- 3With a T-shape structural design, the VN-05-H-T3-PQ2-VQ2-RO1-A ensures efficient airflow and optimal performance.
- 4Operating with compressed air as per ISO 8573-1:2010, this generator ensures reliable operation in a wide range of environments.
- 5Weighing only 24 grams, the VN-05-H-T3-PQ2-VQ2-RO1-A is a compact and lightweight solution for your industrial needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | Standard High negative pressure | Integrated function | Ejector pulse valve, pneumatic Pneumatic muffler open |

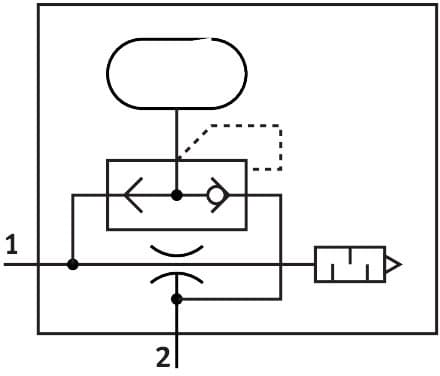

Structural design | T-shape | Symbol | 00992043 |
Operating pressure for max. suction rate | 3bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 4.9bar | Max. vacuum | 92% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 7.2l/min |
Air supply time at nominal operating pressure | 3.63s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Cleaning advice | Soap suds | Noise level at nominal operating pressure | 56dB(A) |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 49g | Type of mounting | With through-hole With H-rail With accessories |
Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | Pneumatic muffler open |
Vacuum connection | QS-6 | Material of connecting thread | Wrought aluminum alloy, anodized |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | PA-reinforced POM-reinforced |
Muffler material | PE | Material of screws | Steel |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 532620 |
Specifications may be subject to change without notice
