Product Model
vn-05-h-t4-pq2-vq2-o2-p
Selling Points

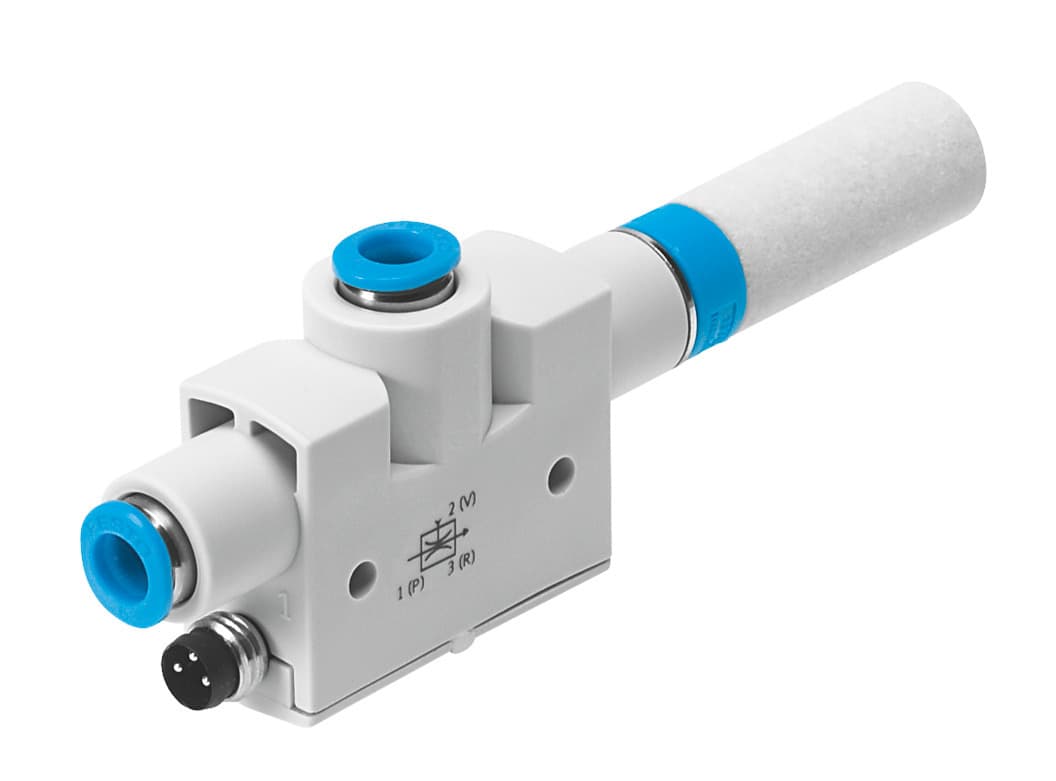

- 1The Festo VN-05-H-T4-PQ2-VQ2-O2-P Vacuum Generator is built with reliable quality, ensuring consistent performance in various pneumatic applications.
- 2This vacuum generator is designed to be compact, making it ideal for space-constrained environments without compromising on functionality.
- 3The Festo VN-05-H-T4-PQ2-VQ2-O2-P can be easily integrated into existing pneumatic systems, offering a seamless solution for your automation needs.
- 4With its optimized design, this vacuum generator provides efficient performance, ensuring that your pneumatic systems operate at peak levels.
- 5Constructed with durable materials, the Festo VN-05-H-T4-PQ2-VQ2-O2-P is designed to withstand the demands of continuous operation, extending its service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 16mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Integrated function | Pressure sensor Pneumatic muffler open |
Structural design | T-shape | Short-circuit protection | Pulsed |
Measured variable | Relative pressure | Measuring principle | Piezoresistive |
Method of measurement | Relative | Switching element function | N/O contact |
Switching function | Threshold value comparator Threshold value with variable hysteresis | Symbol | 00991917 |
Reverse polarity protection | for all electrical connections | Display type | LED |
Setting range threshold value | -1bar 0bar | Setting options | Teach-in |
Switching status indication | LED | Threshold value setting range | -14.5psi 0psi |
Operating pressure for max. suction rate | 43.5psi | Operating pressure | 14.5psi 116psi |
Operating pressure for max. vacuum | 71.05psi | Max. vacuum | 92% |
Nominal operating pressure | 87psi | Max. suction rate with respect to atmosphere | 7.2l/min |
Switch-off time | 4ms | On time | 4ms |
DC operating voltage range | 15V 30V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Max. output current | 100mA | Residual current | 0.3mA |
Residual ripple | 10 % | Switching output | PNP |
Voltage drop | 1.5V | Overload protection | Available |
Certification | RCM compliance mark | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 0°C 60°C | Cleaning advice | Soap suds |
Noise level at nominal operating pressure | 62dB(A) | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Max. tightening torque | 0.6Nm |
Pressure measuring range | -14.5psi 0psi | Product weight | 33g |
Accuracy in ± % FS | 1.5%FS | Long-term drift | ±0.5 % FS max. |
Temperature coefficient of switching point | 0.05%/K | Electrical connection | 3-pin M8 |
Type of mounting | With through-hole | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-6 |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Fiber-optic cable | PC |
Muffler material | PE | Material of plug housing | Brass PA Chrome-plated and nickel-plated |
Material of jet nozzle | Wrought aluminum alloy | Material of keypad | POM |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 536797 |
Specifications may be subject to change without notice
